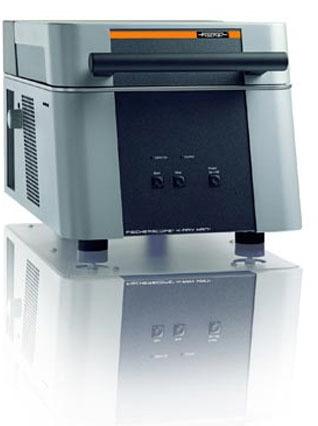

X-RAY XAN 220 Gold Testing Machine For Hallmarking Centres

Get Latest Price

MaterialGold And Silver Alloys
SpecialitiesFast And Non-destructive Analysis, Compact Size, Consistent Performance, Excellent Accuracy, Long Term Stability, High Functional Efficiency, Time Saving Quality, Good Detection Sensitivity, High Accuracy
UsageAnalysis Of Precious Metals And Their Alloys In Composition And Coating Thickness, Measurement Of Up To 24 Elements
Number Of FlowerGold Testing Machine
Supply TypeManufacturer, Exporter, Supplier, Retailer, Importer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Fischer Measurement Technologies (India) Pvt. Ltd.

Hinjewadi, Pune, Maharashtra

4.6/5

(17)

View Number

Member Since 16 Years
Nature of Business Manufacturer
GST No. 27AAACF9487H1Z6

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerGold Testing Machine
MaterialGold And Silver Alloys
UsageAnalysis Of Precious Metals And Their Alloys In Composition And Coating Thickness, Measurement Of Up To 24 Elements
SpecialitiesFast And Non-destructive Analysis, Compact Size, Consistent Performance, Excellent Accuracy, Long Term Stability, High Functional Efficiency, Time Saving Quality, Good Detection Sensitivity, High Accuracy
Range Of ElementsChlorine (17) To Uranium (92)
Technical SpecificationsAvailable In Various Technical Specifications, Optimized X-ray Fluorescence Measuring Instruments

Gold testing machine in assaying centres: XAN220 is available in various technical specifications these are widely used for fast and non-destructive analysis and coating thickness measurement of gold and silver alloys. These are optimized X-ray fluorescence measuring instruments, acclaimed for compact size and consistent performance.
These are widely used for the analysis of precious metals and their alloys in composition and coating thickness and used for the measurement of up to 24 elements in the range of chlorine (17) to uranium (92). Our products are extensively acclaimed for its excellent accuracy and long term stability.
These are admired for high functional efficiency, time saving quality and effective usage. Owing to its good detection sensitivity and high accuracy, these are widely recommended by large numbers of clients.

Details

Application	Analysis of Jewellery, precious metals and dental alloys Yellow and white gold Used in Gold Manufacturing, Assaying and Refinery. Platinum and silver Rhodium Alloys and coatings Multi layer coatings
Design	Fixed Sample Support For quick and easy sample positioning, the X-ray source and semiconductor detector assembly is located in the instruments lower chamber. The measuring direction is from underneath the sample, which is supported by a transparent window. The integrated video-microscope with zoom and crosshairs simplifies sample placement and allows precise measuring spot adjustment.
General Specification	Intended use Energy dispersive X-ray measuring instrument (EDXRF) to analyze Gold, precious metals and their alloys in composition and coating thickness. Element range Chlorine (17) to Uranium (92) up to 24 elements simultaneously Repeatability 0.5 for gold Measurement time 60 sec Design Bench top unit with upwards opening hood Measuring direction Bottom up
X-Ray Source	X-ray tube Micro-focus tungsten tube with beryllium window Aperture (Collimator) 1 mm (39 mils), optional 2 mm (79 mils) or 0.6 mm (23.6 mils) Measurement spot Aperture diameter plus 200 m (8 mils), at measurement distance MD = 0 mm
X-Ray Detection	X-ray detector Silicon Drift Detector (SDD), peltier-cooled Resolution (fwhm for Mn-K±) 160 eV Measuring distance 0 25 mm (0 1 in) Distance compensation with patented DCM method for simplified measurements at varying distances. For particular applications or for higher demands on accuracy an additional calibration might be necessary
Dimensions	External dimensions Width x depth x height 403 x 588 x 365 mm (16 x 23.2 x 14.4 in) Weight Approx. 45 kg (99 lb)

Application

Analysis of

Jewellery, precious metals and dental alloys Yellow and white gold
Used in Gold Manufacturing, Assaying and Refinery.
Platinum and silver
Rhodium
Alloys and coatings
Multi layer coatings

Design

Fixed Sample Support

For quick and easy sample positioning, the X-ray source and semiconductor detector assembly is located in the instruments lower chamber. The measuring direction is from underneath the sample, which is supported by a transparent window. The integrated video-microscope with zoom and crosshairs simplifies sample placement and allows precise measuring spot adjustment.

General Specification

Intended use

Energy dispersive X-ray measuring instrument (EDXRF) to analyze Gold, precious metals and their alloys in composition and coating thickness.

Element range

Chlorine (17) to Uranium (92) up to 24 elements simultaneously

Repeatability

0.5 for gold

Measurement time

60 sec

Design

Bench top unit with upwards opening hood

Measuring direction

Bottom up

X-Ray Source

X-ray tube

Micro-focus tungsten tube with beryllium window

Aperture (Collimator)

1 mm (39 mils), optional 2 mm (79 mils) or 0.6 mm (23.6 mils)

Measurement spot

Aperture diameter plus 200 m (8 mils), at measurement distance MD = 0 mm

X-Ray Detection

X-ray detector

Silicon Drift Detector (SDD), peltier-cooled Resolution (fwhm for Mn-K±) 160 eV

Measuring distance

0 25 mm (0 1 in)

Distance compensation with patented DCM method for simplified measurements at varying distances. For particular applications or for higher demands on accuracy an additional calibration might be necessary

Dimensions

External dimensions

Width x depth x height 403 x 588 x 365 mm (16 x 23.2 x 14.4 in)

Weight

Approx. 45 kg (99 lb)
