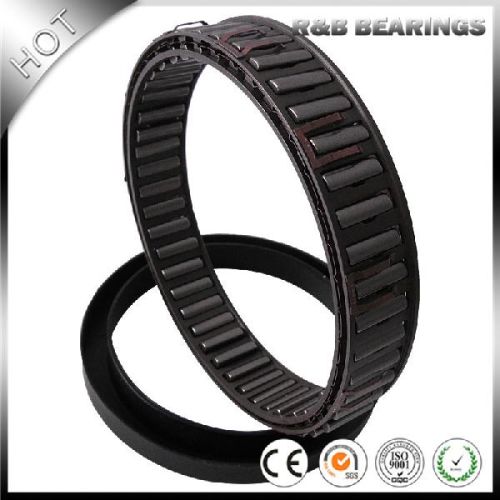

X Series One Way Freewheel Cage Clutch

Specification
Type Drag torque Size(mm) Number of clips
Tkn(NM) a c sprag space e d b
DC2222G 50 22.225 38.885 8.33 10 50 17
DC2776 95 27.762 44.422 8.33 13.5 58 21
DC3034 99 30.34 47 8.33 13.5 62 23
DC3175(3C) 127 31.75 48.41 8.33 13.5 63 24 3
DC3809A 220 38.092 54.752 8.33 16 71 29
DC4127(3C) 179 41.275 57.935 8.33 13.5 75 32 3
DC4445A 290 44.45 61.11 8.33 16 79 34
DC4972(4C) 245 49.721 66.381 8.33 13.5 86 38 4
DC5476A 420 54.765 71.425 8.33 16 92 42
DC5476A(4C) 420 54.765 71.425 8.33 16 92 42 4
DC5476B(4C) 615 54.765 71.425 8.33 21 92 42 4
DC5476C(4C) 792 54.765 71.425 8.33 25.4 92 42 4
DC5776A 483 57.76 74.42 8.33 16 98 44
DC6334B 645 63.34 80 8.33 21 104 50
DC7221(5C) 540 72.217 88.877 8.33 13.5 115 56 5
DC7221B 1023 72.217 88.877 8.33 21 115 56
DC7221B(5C) 1023 72.217 88.877 8.33 21 115 56 5
DC7969C(5C) 1630 79.698 96.358 8.33 25.4 124 61 5
DC8334C 1645 83.34 100 8.33 25.4 132 65
DC8729A 1000 87.29 103.96 8.33 16 134 67
DC10323A(3C) * 1290 103.231 ** 119.891 8.33 16 155 80 3
DC12334C * 3840 123.34 ** 140 8.33 25.4 184 96
DC12388C(11C) 3900 123.881 142.88 9.5 25.4 196 96 11
