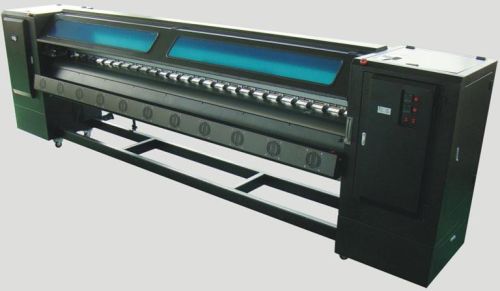

Xaar 382 Solvent Printer

Product Model Sunjet 3308
Print Head XAAR 382/35, 4x1 heads (or 4x2)
Maximum Print Width 3200mm (126 inch)
Maximum Media Width 3200mm (126 inch)
Resolution 360×180Dpi; 360×360Dpi; 360×540Dpi; 360×720Dpi;
720×540Dpi; 720×720Dpi; 240×180Dpi; 240×360Dpi;
240×540Dpi; 240×720Dpi; 480×540Dpi; 480×720Dpi.
Print Speed Draft 58m2/hr (360x180Dpi - 1 Pass - 4x1 heads - W 3.2m
100m2/hr (360x180Dpi - 1 Pass - 4x2 heads - W 3.2m
53m2/hr (360x180Dpi - 1 Pass - 4x1 heads - W 2.5m
68m2/hr (360x180Dpi - 1 Pass - 4x2 heads - W 2.5m
Standard 53m2/hr (360x360Dpi - 2 Pass - 4x1 heads - W 3.2m
78m2/hr (360x360Dpi - 2 Pass - 4x2 heads - W 3.2m
48m2/hr (360x360Dpi - 2 Pass - 4x1 heads - W 2.5m
69m2/hr (360x360Dpi - 2 Pass - 4x2 heads - W 2.5m
High Quality 33.35m2/hr (360x720Dpi - 4 Pass - 4x1 heads - W 3.2m
56.33m2/hr (360x720Dpi - 4 Pass - 4x2 heads - W 3.2m
32.6m2/hr (360x720Dpi - 4 Pass - 4x1 heads - W 2.5m
54.9m2/hr (360x720Dpi - 4 Pass - 4x2 heads - W 2.5m
Ink Type Solvent Ink
Color Cyan, Magenta, Yellow, Black
Capacity 1000ml Per Main Tank of Each color
Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System
Media Types Vinyl, Window Film, Polyester, Flex, etc
Feeding Roll Media or Sheet Media
Auto Media Feeding & Take-up System Optional
Printhead Cleaning System Automatic Cleaning System
Automatic Dry-preventing System
Pre-heater & Dry System Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan
Clamp Equipped
Print Interface USB2.0
Printhead Height 2 to 4mm Above Media Adjustable
RIP Software Photoprint 6.0
Input Power 100~240V,50Hz/60Hz
Machine Dimension L4640mm ×W720mm×H1350mm
Package Dimension L4700mm ×W900mm×H1730mm
