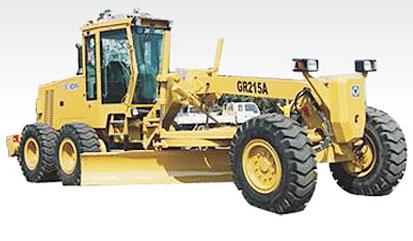

Contact SupplierWe offer Xcmg Gr215a Motor Grader.
Basic specification
Engine model QSB6.7 6CTA8.3
Rated power/speed 164kW/2200rpm
160kW/2200rpm
Dimension(LxWxH) 9180×2625×3300mm
Operating weight(Standard) 16100kg
Performance specification
Travelling speed ,forward 5、8、11、19、23、
38 km/h/h
Travelling speed ,reverse 5、11、23 km/h
Tractive force(f=0.75) 82KN
Max. Gradeability 20%
Tire inflation pressure 260 kPa
Working hydraulic pressure 16 MPa
Transmission pressure 1.3~1.8MPa
Operating specification
Max. Steering angle of front wheels ±50°
Max. Lean angle of front wheels ±17°
Max. Oscillation angle of front axle ±15°
Max. Oscillation angle of balance box 15
Frame articulation angle ±27°
Min. Turning radius using articulation 7.3m
Biade
Maximum lift above ground 450mm
Maximum depth of cutting 500mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard width X height 4270×610mm.
