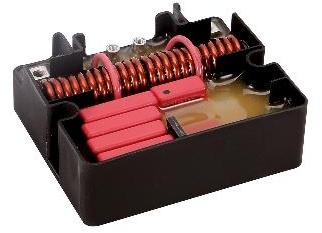

Xenon Lamp Ignitor

Igniters
· ZG 30 Xe-S 35 Amps Igniter with symmetrical ignition,
no anode or cathode ground operating
· ZG 30 Xe-A 35 Amps Igniter with asymmetrical ignition,
anode or cathode ground operating
· ZG 120 Xe 75 Amps Igniter with asymmetric ignition anode
or cathode ground operating
Features
· Power supply for xenon filled short arc lamps, GL VI-7-2 approved
· Designed for xenon short arc lamps rated up to 500 W 44 A
· Output power customer selectable by controle voltage 0 to 5 V
· Capable to drive lamp voltage ranges from 15 to 29 V
· Length x width x height (mm) 220 x 132 x 141, 2.125 kg
· PSU boards inside IEC (UL) 60601 approved and HALT tested
· Input voltage range from 90 V AC to 264 V AC,
power factor corrected line input, built-in EMI-filter: meets CE and
