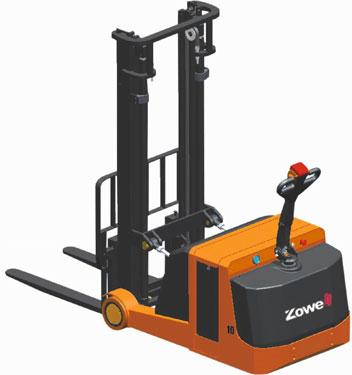

Xep Electric Counter Balance Stacker, Packaging Type : Orange

We offer xep electric counter balance stacker.
Features of 1ton counter balance stacker
1. Swiss bucher brand or italy hydrapp hydraulic pump.
2. Regenerative braking function
3. Curtis electronic controller
4. Germany frei handle
5. Battery side extraction: battery can be removed from the side, making it very convenient to replace and maintain batteries.
6. Emergency reversing device in the handle provides improved operating safety.
7. Emergency power disconnect switch.
8. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
9. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
technical data of 1ton counter balance stacker
identification product model 　 xep10
power supply 　 electric
operating type 　 pedestrian standing
load capacity q kg 1000
load center distance c mm 500
load distance x mm 180
wheelbase y mm 1100
weight (without battery) kg 1330
wheel tyres 　 polyurethane
tyre size drive end mm φ250x80
type size load end mm φ210x85
loaded wheels center distance mm 775
dimensions height data is on the bottom — height data choices
overall length l mm 2400
overall width w mm 850
forks height, lowered h1 mm 35
minimum ground clearance h5 mm 50
height of handle in drive position (maxmin) h6 mm 1245670
turning radius r mm 1325
performance travel speed loadedunloaded kmh 4.85.6
lift speed loadedunloaded mms 90120
lowering speed loadedunloaded mms 12580
max gradeability loadedunloaded % 58
service brake 　 electromagnetic
electric motor drive motor rating kw 1.2
lift motor rating kw 2.2
battery voltage nominal capacity vah 24240
battery weight kg 247
others type of drive control 　 mosfet control
noise level at operator’s ear db(a)
