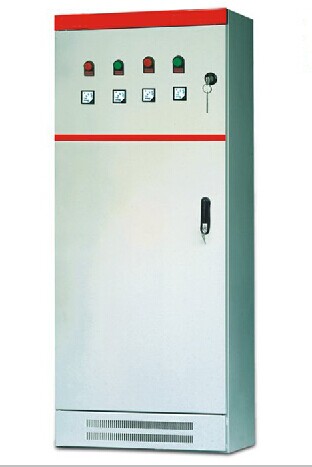

Xl Motive Power Distribution Cabinet

We are offering xl motive power distribution cabinet.
Type: xl
rated voltage: 660 v or lower
name: power distribution cabinet
ac: 50hz
dimension: customized
frequency: 50hz
ip: 30
capacity: 0.52-75 kw
xl low-voltage power switchgear is use in 3-phase 4-wire power system with ac 50 hz, rated voltage of 660 v or lower and transformer lower than 1000 kva for power distribution and power lighting of the hotel, hospital, port and factories and mines enterprises, and the electric control device and lighting of motor with voltage of 380 v and capacity of 0.52–75 kw , and can also be used in places conforming to requirements of this power distribution cabinet. It is featured by flexible schemes, convenient combination, strong applicability and new structure, with enclosure protection grade of ip 30.
the product conforms to iec60439.1-1999 low-voltage switchgear and control gear assemblies and gb7251.1-2005 low-voltage switchgear and control gear assemblies.
service conditions:
1. The altitude shall not be higher than 2,000 m.
2. The ambient air temperature shall not be higher than +40°c, and shall not be lower than -10°c, and the average temperature within 24 h shall not be higher than +35°c;
3. There shall not be too much dust, acid, salt, corrosive and explosive gas. Relative humidity of ambient air shall not be higher than 50% at the max temperature of +40°c, and it shall be permissible to have rather high relative humidity in low temperature, for instance, the relative humidity at +20°c is 90%, while considering the temperature variation, condensation may appear occasionally.
4. The special requirements from users shall be solved in agreement with manufacturer.
