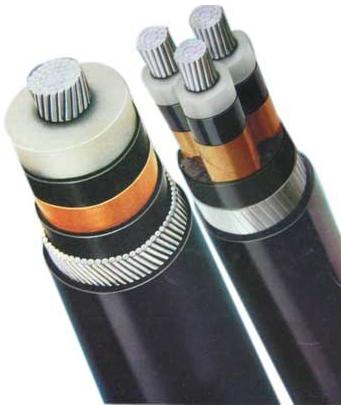

We are offering xlpe insulated underground cable.
Standard: iec 60502
specification:
standard: iec 60502
rated voltage: 35kv and below
max. Working temperature: 90 degrees
max. Allowed temperature under short-circuit: 150 degrees
conductor: aluminum and copper available
conductor screen: semi-conducting material
insulation layer: xlpe
insulation screen: semi-conducting compound
metallic screen: copper tape
inner cover: pvc
armor: steel tape, steel wire for 3 cores cable, aluminum wire, stainless steel wiretape for single core
sheath layer: pvc
minimum bending radius: 15 times for single core, 12 times for multi core
no. Of cable cores: 1, 3
nominal area: 25~630 mm2
application
applies rated voltage 35kv & below and have a service life more than 40 years. It can be used in environments such as indoor, underground, tunnel, cable trenches, etc. The available models include:
aluminum conductor pvc insulated xlpe sheathed cable
aluminum conductor 3-core steel tape armored xlpe insulated pvc sheathed cable
aluminum conductor 3-core steel wire armored xlpe insulated pvc sheathed cable
copper conductor pvc insulated xlpe sheathed cable
copper conductor single core stainless steel tapewire armored xlpe insulated pvc sheathed cable
copper conductor single core aluminum wire armored xlpe insulated pvc sheathed cable.
