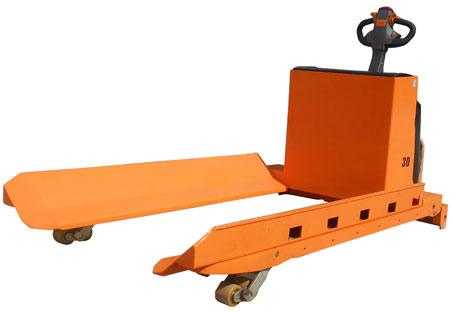

Xpk Electric Paper Roll Pallet Truck, Load Capacity : 1500-3000KG

We offer xpk electric paper roll pallet truck.
features of 2ton and 2.5ton center control pallet truck
1. Swiss bucher brand hydraulic pump.
2. Regenerative braking function
3. Curtis electronic controller
4. Germany frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
technical data of 2ton and 2.5ton center control pallet truck
identification 1 product model designation 　 xpc20 xpc25
2 drive unit 　 electric electric
3 operate type 　 standing standing
4 load capacity kg 2000 2500
5 load center mm 600 600
6 load distance, mm 182 182
7 center of drive axle to fork back mm 1872 1872
　
weight 1 truck weight (without battery) kg 405 405
2 axle loading , loaded(frontrear) kg 1931674 2301804
3 axle loading , unloading(frontrear) kg 448157 448157
　
wheel 1 tires 　 polyurethane polyurethane
2 drive wheels size mm φ230×75 φ230×75
3 loaded wheels size mm φ80×70 φ80×70
4 balance wheels size mm φ100×40 φ100×40
5 wheels number, 　 1x-24 1x-24
6 frontrear(x=driven wheels) mm 510 510
7 tread ,front mm 400 400
　
dimensions 1 height, mast lowered mm 1280 1280
2 lift height mm 205 205
3 forks height, lowered mm 85 85
4 height of tiller mm 1200985 1200985
5 in drive position(maxmin) mm 2208 2208
6 overall length mm 1058 1058
7 length to face of forks mm 725 725
8 overall width mm 160551150 160551150
9 fork dimensions mm 520560680 520560680
10 minimum ground clearance mm 30 30
11 aisle width for pallets mm 2485 2485
12 800x1200 lengthways mm 2053 2053
