Xps Foam Board Machine

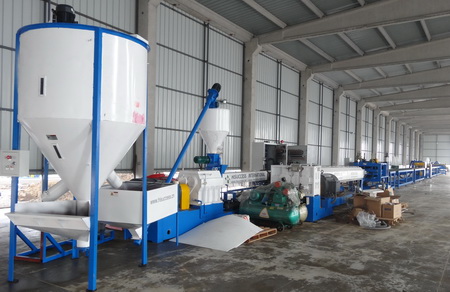

Xps insulation board production line
brief introduction
what is xps?
xps (extruded polystyrene) insulation board, is a new insulation material, which is a high quality foam product characterized by smooth skin with a closed-cell structure that looks like a mass of uniform bubbles with common walls between them. There are few, if any, voids between the cells, top and bottom skin.
features of xps
comparing with other traditional insulation materials, such as eps, pu and rock wool, xps is improved in terms of insulation, moisture-proof, compressive strength, durability, convenient installation and low cost.
As an ideal material, xps is widely applied in heat preservation and insulation systems, moisture-proof and obstruct systems, with promising potential market.
Main configuration
feeding system first extruder hydraulic mesh exchanger second extruder mould calibrator first haul-off unit longitudinal cutter cross cutter second haul-off unit controlling system packing system
main parameters
item him-x-500
extruder system 1st extruder 2nd extruder
screw dia mm 75*2 150
ld ratio ld 30:1 33:1
driving motor power kw 75 75
capacity kgh 350~450
product width mm 600
product thickness mm 20~100
density kgm3 30~39
total power kw 260
the advantages of xps production line
1. The xps insulation board production lines from hisuccess international (our lines) are much cheaper than the lines with same capacities from europe, only 10% to 20%. The products from both the lines are similar.
