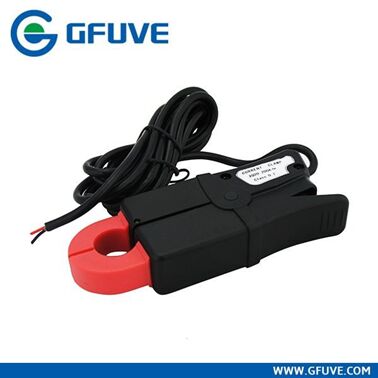

XQ20 High Precision Standard Mini Clamp-on Current Sensor CT

Introduction
xq20 high precision standard mini clamp-on current sensor ct
the model xq20 clamp on current sensor is suitable for 200a cable online measurement, the user friendly shape make it easily clamp onto cables or bus bars.
Applications 1. electric energy meter calibrator (on site) 2. double clamp type ground resistance tester 3. double clamp type phase volt-ampere meter 4. digital multi-meter 5. multi-function energy meter 6. oscilloscope 7. power quality analyzer 8. matched instruments 9. calibration instrument on site
features 1. measurement range of 1ma to 200a ac 2. small, compact size 3. improved ergonomic design and easy operation 4. low phase shift for power measurement 5. with load capacity ≤4ω 6. output model: lead output(2.5m)
parameters
ratio 1000: 1 or 2000:1 (customized) accuracy class 0.1%, 0.2% primary current 0 - 200a ac secondary current 0 - 200ma ac (customized) max. Cont. Input current 240a load capacity ≤4ω over voltage category cat iii 600v output signal (ac current) from 0 to 200ma ac at nominal input current electrical parameters output signal (ac voltage) from 0 to 2v ac at nominal input current frequency range 40hz-2000hz dielectric strength 3kv 50hz60hz at 1minute temperature range -20°c to +55°c output 2.5 meter cable with d01 connector max. Voltage not insulated conductors 600 v standard en 61010-1, en 61010-2-032, iec60044-1 installation clamp type output mode lead output (2.5m)
dimensions (l x w x h) (mm) 52.5 x 137.5 x 28 weight (g) 400 holding wire diameter (mm) φ20 max. Jaw opening (mm) 20 jaw color red, yellow, blue, green, black material pc+abs+polycarbonate, ul94 v0
