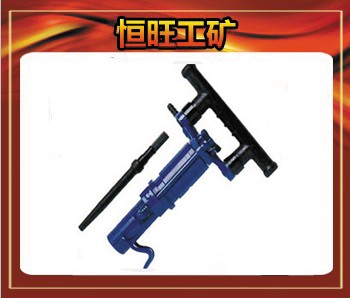

Y Series Rock Drilling Machine

We are offering y series rock drilling machine. Y8、y18、 y19 、y26 type hand held rock drill with advantages of small volume, light weight, less gas consumption.it can be dry drilling, also can undertake wet drilling.
Applicable to small mines, quarries and mountain road construction, water conservancy construction in surface engineering construction of blasting hole drilling vertical or inclined down or the secondary blasting hole. It applied to surface drilling vertical down, slope blasting hole,or secondary blasting hole of small mines, quarries, mountain road construction, water conservancy construction .
mdoel y8 y18 y19 y26
weight 8 kg 18 kg 19 kg 26kg
length 400 mm 550 mm 600 mm 650mm
cylinder bore 32 mm 58 mm 65 mm 65 mm
piston stroke 27 mm 45 mm 54 mm 70 mm
working air pressure 0.4-0.63mpa 0.4-0.63mpa 0.4-0.63mpa 0.4-0.63mpa
air tube bore 19mm 19mm 19mm 19mm
water pipe bore 13mm 13mm 13mm 13mm
shank specification 22*108mm 22*108mm 22*108mm 22*108mm
