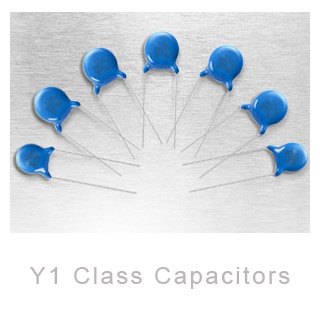

Y1 Class Safety Recognized Ceramic Capacitor

Features flame retardant epoxy resin coated.
Compact size.
Cost effective product.
Safety standards recognized for ac applications.
Applications used for across the line applications.
Specifications reference standard: iec60384-14
operating temperature: -25℃ - +85℃
capacitance range: 100pf - 4700pf
capacitance: within specified tolerance at 1khz, 25±2℃, ac1±0.1vrms
capacitance tolerance: ±10%(k), ±20%(m)
rated voltage: x1: 400vac, y1: 250vac400vac
dissipation factor: ≤2.5% 1khz, 25±2℃, ac1±0.1vrms
insulation resistance: 10,000 mohm min. 500vdc, 60 sec.
Dielectric strength: 4,000vac for 60 sec.
Notes customization for special specification and requirement is available.
