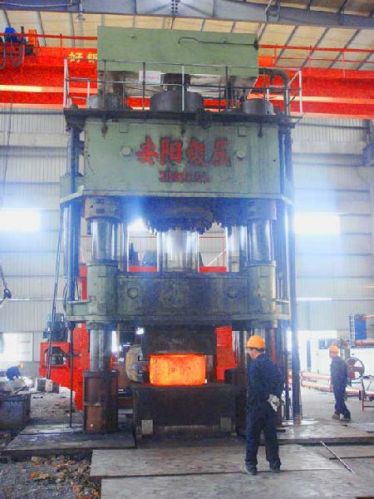

Metal Y13 Series Hydraulic Free Forging Press Y13-800

₹ 89.60 Lakh / Set

MOQ1 Set(s)
MaterialMetal
Brand NameAnyang Forging Press
StandardCE, ISO
Quality100
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

SizeY13-800
Brand NameAnyang Forging Press
MaterialMetal
Applicationfor open die forgings
StandardCE, ISO
Quality100
After-Sales Service ProvidedEngineers available to service machinery overseas
CertificateCE, ISO
Number Of FlowerY13-800
Country of OriginChina
Model NumberY13 Series Hydraulic Free Forging Press
Norminal pressure8 MN
Fast forge frequency45 No./min
Motor Power440 Kw
NameY13 Series Hydraulic Free Forging Press
return speed200 mm/s
Max. forgeable ingot2.5/5 T
System pressure25 Mpa

Hydraulic Open Die Forging Press
Hydraulic open die forging press is a fully hydraulic controlled forging equipment which using the hydraulic pressure to transfer energy. It is mainly used to forge alloy steel, stainless steel, high alloy steel and other metal . It can realize high-speed forging, general forging, pressure keeping etc many functions. The forging press is mainly used for industrial open die forging work, upsetting, punching, reaming, stagger, cutting, bending, drawing etc, which can be used to produce big size excellent quality open die forgings in the field petrochemical, metallurgical, mining, electric power, aerospace etc.
Features:
1. Working is stable and no vibration.
2. Easily got high forging depth.
3. Can match with manipulator to build forging line.
4. Three cross beam and four columns, high rigidity structure.
5. Multistage overloading protection system.
6. PLC control.
7. Reliable electrical cooling system.
8. Can supply mobile and rotary worktable.
