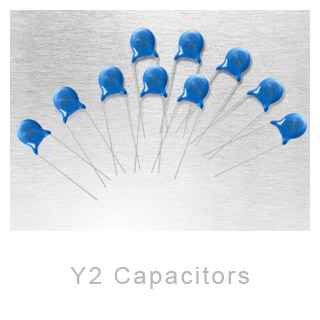

Features Flame retardant epoxy resin coated.
Compact size.
Cost effective product.
Safety standards recognized for AC applications.
Applications Used for across the line applications.
Specifications REFERENCE STANDARD: IEC60384-14
OPERATING TEMPERATURE: -25℃ - +85℃
CAPACITANCE RANGE: 100pF - 10000pF
CAPACITANCE: Within specified tolerance at 1KHz, 25±2℃, AC1±0.1Vrms
CAPACITANCE TOLERANCE: ±10%(K), ±20%(M)
RATED VOLTAGE: X1: 440VAC, Y2: 250VAC
DISSIPATION FACTOR: ≤2.5% 1KHz, 25±2℃, AC1±0.1Vrms
INSULATION RESISTANCE: 10,000 MOhm min. 500VDC, 60 sec.
DIELECTRIC STRENGTH: 2,600VAC for 60 sec.
Notes Customization for special specification and requirement is available.
