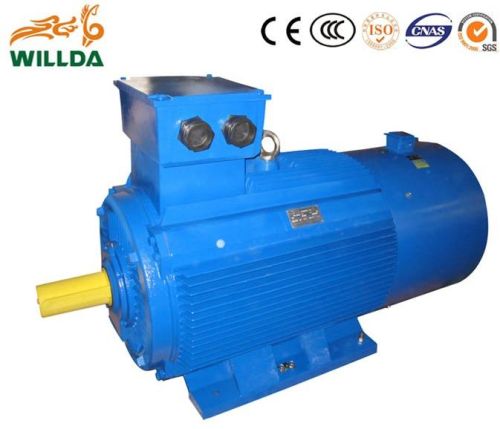

Y2 Series Three Phase AC Electric Motor (30kw/40HP)

We are offering y2 series three phase ac electric motor
1) ce, sgs, cqc, iso certificate
2) 0.12kw-280kw
3) 2p, 4p, 6p, 8p
4) 380v-660v, 50hz or 60hz
5) factory price, oem
y2 series three-phase electrical motor is specially designed for european market, whose terminal box is located on the top. This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the iec standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
We can also supply aluminum housing type for frame size below iec132.
Operating conditions
ambient temperature: -15≤ ≤ 40
altitude: altitude should be lower than 1000meters above sea level.
Rated voltage: 380v rated frequency: 50hz
connection: star-connection for 3kw or less whereas delta-connection for 4kw or more.
Dutyrating: continuous (s1).
Insulation class: f, the temperature rise of the stator winding is examined at 80k (by resistance method).
Protection class: the main body of the motor is ip54
cooling method: ic411.
Willda factory is the professional ac motor manufacturer and exporter,
single phase: mcml myycyl series
three phase: aeefyy2msrussia gostnema series
if you are interested in it, welcome to email us or call us freely.
