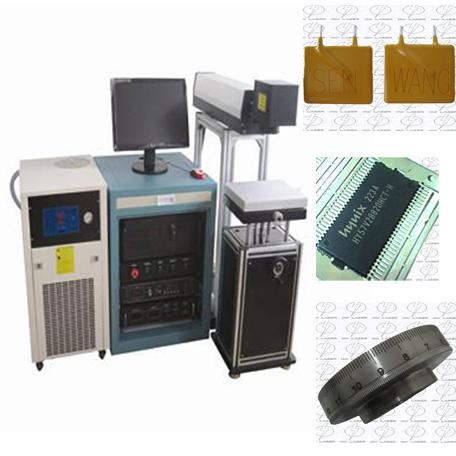

Yag Laser Marking Machine, Packaging Type : bule

We are offering yag laser marking machine for all metal and most of nonmetal.
Features:
1. Machine takes co2 laser tube as laser source
2. By 2d fast-speed scanning mirrors swinging as scheduled angles under controlling of computer, laser focus on surface of work piece by f-θ lens to form images and realize marking and graph processing
3. Using american made co2 laser tube, with exquisite beam quality, stable power output, high marking precision, long working life time and can work for 45,000 hours free of maintenance, then can be recharged by filling co2 gas, suitable for users requiring batch production and high marking precision
4. Once invested, whole-life benefited
5. Using fast-speed scanning mirrors, can be graph in shortest time, finish fine marking process
6. Using simple structure, abrasion and rusty against component, system have most stable performance and moving precision
7. Can configure automatic configuration fixture and baiting production line
8. Can mark data, serial number and bar code automatically
applicable area and material:
used in field of garment engraving and cutting, fabric cutting, medical packaging, handicrafts and gifts, building ceramics, beverage packaging, packaging, rubber items, nameplate casing, electronic components, leather and other industries
techinical paramers:
model number hw 30/60/100zj-co2-ii
max.output power 30w/60w/100w
laser wavelength 10.64 muon m
repetition frequency ≤20khz≤25 khz≤100 khz
standard marking scope 100mm*100mm(optional)
marking depth ≤8mm
marking speed ≤7000mm/s
min.line width 0.1mm
min.charactor 0.4mm
repetition precision ±0.01mm
machine power 1.2kw
electric power demand 220v/singlephase/50hz/8a
optical-path system size 1200mm*190mm*200mm
controlling size 600mm*600mm*800mm
water cooling air-cooled
