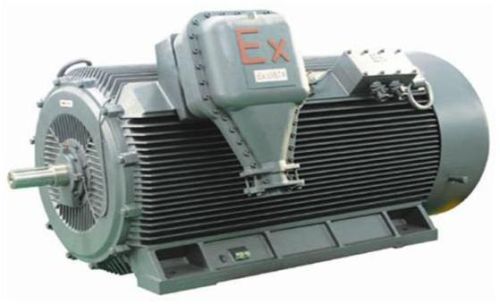

YB2 Series High Voltage Asynchronous Motor (YB2-6)

YB2 Series High Voltage Asynchronous Motor (YB2-6) is imported by us and supplied into the Indian market, owing to the specifications of the product. The YB2 Series High Voltage Asynchronous Motor (YB2-6) is convenient to use, cost-efficient and a very useful device for energy generation.
Type : YB2 high voltage explosion-proof series three-phase asynchronous motors (No. of motor case : 355-560)
Technical Information

• Rated voltage : 3KVï¼�6KVï¼�10KV
• Rated frequency : 50HZ
• Insulation class : Class F (temperature rise is checked as per class Bï¼�
• Working system : S1 sustaining working system

General Description
Type TYB2 series high voltage explosion-proof three-phase asynchronous motors (No. of motor case : 355-560) are new products of our company on the basis of absorbing advantage of similar Type of motors both at home and abroad and of adopting new material and process. This series of motors possess such features as good looking design, high efficiency, strong reliability, small volume and vibration, low noise and high efficient energy saving, and are substitute products of YB355-450,YB560-900 series explosion-proof high voltage motors.
This series of motors comply with the specification of GB3836.1-2010Explosive environment part1�General requirement of equipment, GB3836.2-2010. Explosive environment part 2�Equipment protected by explosion-proof case �d� and GB3836.3-2010Explosive environment part 3�Equipment protected by increased safety Type �e� and, at the same time, for explosion-proof structure of the explosion-proof motor, the standard of IEC60079-1. Structure and experiment on explosion-proof case of electrical equipment and EN50018Electrical equipment �b� for explosive environment can be referred.
The mechanical dimension and tolerance for each part of this series of motors comply with GB/T1800--GB/T1804, limit and coordination, and ISO standard.
The protection grade for case of this series of motors is IP44 or IP54 in accordance with GB/T4942.1-2001, Classification of protection grade of motor case (Code IP). In case of needing other protection grade, negotiation can be made separately.
The way of cooling for this series of motors is IC411 in accordance with standard of GB/T1993-1993and IEC60034-5Cooling method of rotating motor. In case of needing other cooling way, negotiation can be made separately.
The basic installation mode for this series of motors is horizontal structure with base angle (IMB), which complies with the specification of GB/T997-2003 and IEC60034-7Structure and installation mode of rotating motor (code IM).
Outdoor (W),wet tropical zone (TH), outdoor warm tropical zone (WTH) and corrosion-proof Type (�F1� F2,WF1� WF2), which are derived based on YB2, can also derive Type YB2-H series explosion-proof three-phase asynchronous motor for marine in accordance with China National Standard GB/T7060. Basic technical requirement on rotating motor for marine, and its performance, appearance and installation dimension are identical to the basic series of motors.
In case of special requirement from the client, negotiation is made with the manufacturer.
