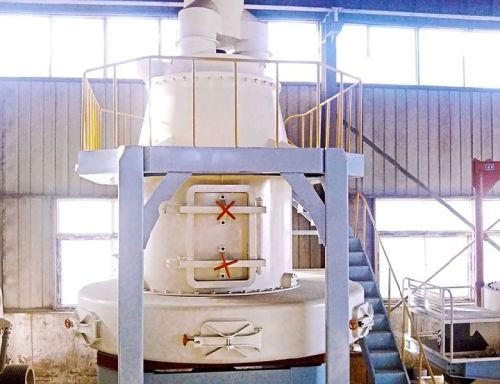

YCV Series Hyper Pressure Grinder

Hyper Pressure V Type Grinder is new type high efficiency grinding mill designed by EMCC engineer combining clients requirement and practical situation.

centrifugal force is transformed to grinding force grinding roller parallel transmit around vertical axis to press grinding ring to guarantee the max surface contact of grinding roller and grinding ring capacity is improved by 30%.

According to fineness requirement bladed classifier (80-325 mesh) and cage classifier (200-1250 mesh) are available.

Main machine is under protection easy to be replaced and maintenance costs is reduced

Grinding roller and grinding ring get wear uniformly and lengthen the using lifetime.

• Production capacity : 0.5-40T/H Notice: this capacity is mean value capacity and the specific production capacity is subject to clients’ actual equipment configuration.
• Processable Material : Power process for limestone calcite fly ash calcium carbide kaolin calcium carbonate coal gangue gypsum slag ore slag coal dust bentonite barite marble talc refractory material.
• Range of Application : Glass rubber farm chemical enamel oil paint phosphatic fertilizer and papermaking industry.

Hyper Pressure V Type Grinder is new type high efficiency grinding mill designed by EMCC engineer combining clients’ requirement and practical situation. Compared with traditional high pressure trapezium mill and high pressure overhang roll mill in the market, it has many advantages. Hyper Pressure V Type Grinder is widely applied in glass, rubber, farm chemical, enamel, oil paint, phosphatic fertilizer and papermaking industry and it could process material whose Moh’s hardness is less than 9.3, moisture is less than 6%, such as talc, barite, calcite, limestone, manganese ore, iron ore, quartz stone and bentonite.

After reducing driving force of the main motor by the gear reducer when the drive center axis and the quincunx rack fixed on the center axis revolve under the centrifugal force the roller revolves around the center axis at the same time parallel swing around the shaft making the roller compress out side to the ring thus ensure that the roller and ring has maximum surface contact. At the same time the roller self revolves around the roller shaft making the material scooped up by the shovel blade to grind after grinding the powder blew to upper part of the mainframe then separating by the separator too coarse powder drops to the grinding room to re-grind the qualified powder airflows into the cyclone powder collector through the discharging pipe is qualified product.
