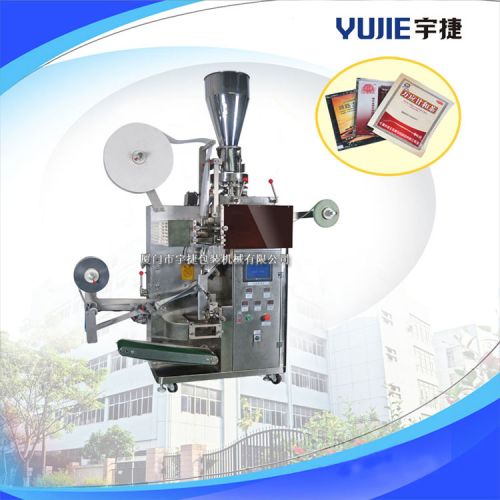

Yd-168 Automatic Teabag Packing Machinery, Brand Name : Yujie

We are offering automatic teabag packing machinery.
Specifications
automatic teabag packing machinery
1.plc control
2.1~5gbag
3.inner (with thread,tag)and outer bag
4.three side sealing
automatic teabag packing machinery
alt
1. Controlled omrong plc
2. Computer touch screen
3. Simply configuration, reduce the cost
4. Ce and iso confirmation
5. Easy to operate and maintain
6. It is stable in operating
alt
i. Applications:
automatic teabag packing machine is suitable for the dual bag packing of small grain-like materials, such as tea leafs, medicinal tea and healthy teas.
Ii. Features
1. Controlled omrong plc
2. Computer touch screen .easy operating
3. Simply configuration, reduce the cost
4. Producing inner and outer bags automatically, and the inner bag with thread and tag.
Iii. Assistant equipement: air compressor
iv. Technical data:
1. Sealing type: three sides sealing
2. Filling range: 1-5gbag
3. Size of inner bag: l50—75mm; w50—75mm
4. Size of outer bag: l85—120mm; w75—95mm
5. Size of tag: 25x25(l*w)
6. Power: 220v50hz single phase
7. Total power: 3.7kw
8. Weight: 650kg
9. Dimension: 1050x700x1300(l*w*h mm)
