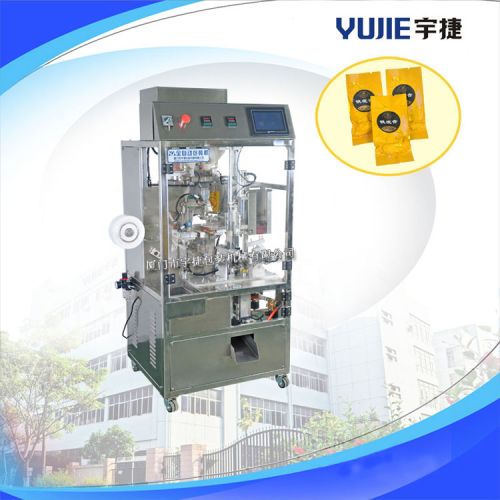

Yd-486 Inner and Outer Vacuum Packing Machine

Specifications
applications:
this machine is use for packing no-sticky granule such as tea, food chemical and medicine .etc
alt yd-486 inner and outer vacuum packing machine
applications:
this machine is use for packing no-sticky granule such as tea, food chemical and medicine ..etc
features:
lwith function of tea inner bag vacuum packing
lvacuum time, sealing time, length and width of vacuum package, length of inner package, sealing position …etc are can be adjusted vacuum fast, imported electronic scales weighting precisely
lthe sealing temperature controller is adjusted by pid to ensure each package sealing flat, increase yield
leasy to operate touch-screen operator interface, human-machine interface improve the efficiency .
loverall machine movement was controlled by plc, simple structure ,reasonable layout, intelligence, science and technology, high gold content
lhigh stability, simple appearance,packing effect is much higher than artificial packing
lautomatic protection function,manual detection,can be equipped multifunction such as date printing.
lone person can manage more than 10 set of this machine, gently reduce the labor cost.
linner bag making is cutting by sealing blades, and made into original circle inner bag. It does not produces any intermixed taste such as flue gas into the tea, to ensure the quality of tea
technical data:
bag size
outer bag: w: 55(mm)
l: 105-120 (mm)
capacity
15-20bagsmin
filling range
2-15g(customized for special materials)
power
220v50hz2.2kw
gas power
0.6 mpa
air consumption
0.4m3min
total weight
about 180kg
dimension(l×w×h)
700*600*1530mm
