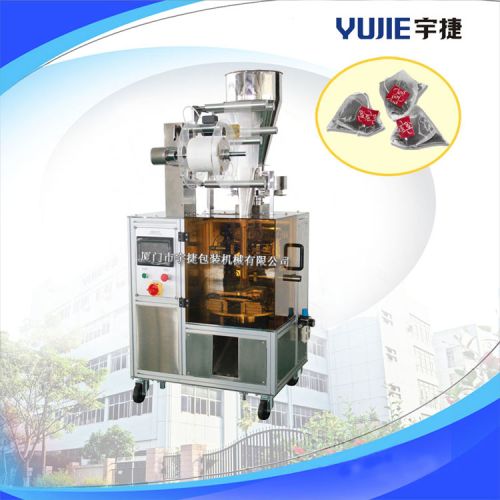

YD-SJB01 Automatic Pyramid Tea Bag Packing Machine(nylon Bag)

Specifications
1.triangle teabag packaging (nylon teabag)
2.plc control,high quality
3.ce and cas iso9000: 2008 certificate
yd-sjb01 automatic nylon triangle tea bag packing machine
applications:
be used for automatically packing products as green tea ,black tea,flower tea ,health tea,medicine tea,granule and so on .
Functions:
this unit can perform either three sides sealing and triangle teabag .just need single bond to change the bag between three sides sealing and triangle shape.
2. Packaging capacity : 3000bagsh (determined by packing material)
3. Applicable packing materials: nylon film with thread and label.
4.the precision volumetric metering way very easily in the transformation of filling material. Electronic scale metering can be collocated according to the material.
5. Human-computer interface,omron plc control,adopted the panasonnic double servo motor to make the bag .supplied complete setting functions.easy operating
6.main motor overload protection device
7. Packaging material tension automatic adjustment device
8. The machine will automatically stop when issued the warning.
Technical data
item
content
capacity
30-50bagsmin (determined by packing material)
filling precision
≤±2% (determined by packing material)
bag size
60-80(w)*40-80(l)mm
packing film
120mm,140mm,160mm
sealing type
triangle bag and flat bag
filling range
2-10ml
film thickness
0.04-0.06mm
packing material
nylon, polyester net non-woven fabrics,. Ultrasonic sealing materials
rolled outer diameter
≤400mm
rolled paper core inside diameter
76mm
air consumption
0.6mpa 0.4m3min
total power
2.2kw
power
single 220v 50hz
air compressor
less than 1 cube
dimension
780× 940×1800mm
