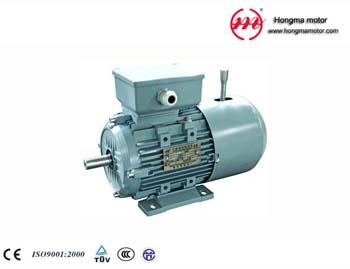

YEJ Series Three Phase AC Brake Motor

YEJ series three phase electro-magnetic AC brake induction motors are best used for automated systems where frequent braking is required, usually in lifting and handling industries, packaging and packing machines. They are very quiet in operation with compact dimensions. YEJ brake motors can be fed directly from the motor terminal box or from a separate line. Braking torque is adjustable (simply turning the adjusting screws of the brake). Special voltages for both the motor and brakes are available on request.
Features and Benefits:
Eff2
· Frame Size H80~225
· Power 0.55~45KW
· Voltage 220/380V;380/660V
· Frequency 50HZ ;60HZ
· Protection Class P44;IP54;IP55
· Insulation Class B;F;H
· Ambi. Temperature -20~+40 °C
· Altitude ≤1000M
