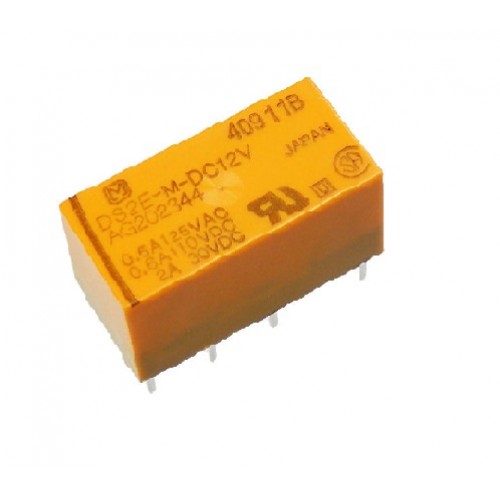

12Vdc Non Latching Signal Relay - DS2E-M-DC12V

We are supplier of 2A DPDT 12V Non Latching Signal Relay - DS2E-M-DC12V in india.
*Features of Non Latching Signal Relay:-
1. High sensitivity: 200 mW pick-up power
100 mW pick-up power types available
2. Latching types available
3. High switching capacity: 60 W, 125 V A
4.High breakdown voltage: 1,500 V FCC surge between open contacts
1,000 V AC between open contacts
* Applications of Non Latching Signal Relay:-
Telecommunication equipment , Office equipment , Computer peripherals , Security equipment , Measuring instrumentation.
Technical Details:-
Standard Package -50
Category-Relays
Family-Signal Relays, Up to 2 Amps
Series-DS
Packaging -Tray
Relay Type-General Purpose
Coil Type-Non Latching
Coil Current-33.3mA
Coil Voltage-12VDC
Contact Form-DPDT (2 Form C)
Contact Rating (Current)-2A
Switching Voltage-250VAC, 220VDC - Max
Turn On Voltage (Max)-8.4 VDC
Turn Off Voltage (Min)-1.2 VDC
