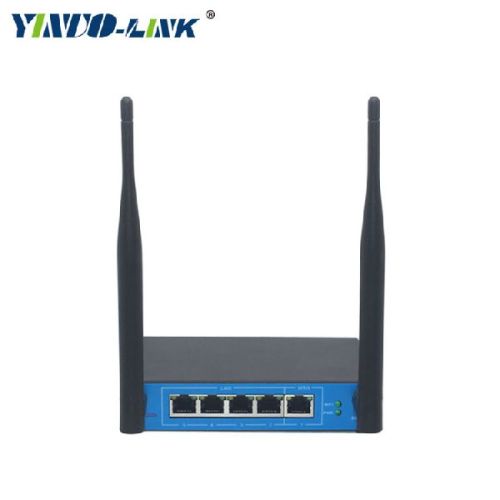

YINUO-LINK Qualcomm AR9341 Firewall VPN 300Mbps Restaurant Wireless Router

technical parameters

modelyn-ar41ap-x1

cpuatheros ar9341 500mhz

working frequency2.400-2483mhz

standardieee802.b/g/n

working moderouting mode, ap mode, client mode

transmit powerup to 27dbm (500mw), maximum power adjustable by software

wireless rate2x2 maximum power 300mbps

modulation technology802.11n 2x2 mimo,802.11a:opdm,6mbps:-95dbm

802.11n,mcs0:-88dmb,mcs7:-73dbm

memory64mb

flash16mb

wifi antenna7dbi omnidirectional*2

wireless functionperipheral site detection/channel scanning

priority ap connection set binding (bssid)

automatic channel selection

security strategyencryption: -wep, tkip, aes

wireless security, open systems, shared keys, wpa/wpa-psk,

wpa2/wpa2-psk, 802.1x (peap, tls, ttls), wapi

system servicesupports virtual dmz, port forwarding

support upnp auto port mapping

configuration managementweb-based management tool with built-in web server

support telnet connection, syslog record system running log, ssh service function

troubleshootingautomatically detect network status and automatically connect after disconnected

support watchdog and pingdog function

power supplypoe 12-48v

power consumption≤8w

working temperature−30°c∼+75°c

storage temperature−40°c∼+85°c

working humidity0-100%

applicationcan be widely used in industrial routing, vehicle and transportation, wireless payment,

green energy, smart meter, smart industry, medical monitoring,

car dvr, personal tracking, charging pile, video surveillance and other fields
