Yoke Plate For Link Fitting

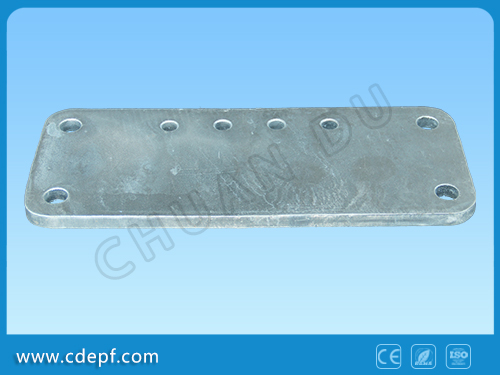

Yoke Plate For Link Fitting The yoke plate is plate-shaped link fitting which is mainly used to connect insulator strings or assemble the load-bearing branches into a integral.  Yoke plates are used for strain equalizing of insulator string as well as spacing of sub-conductor, Up to 220KV single conductor system for important locations like Highway crossing. Yoke Plate (Type L J) Catalog No. Dimensions (MM) Rated Failure Load (KN) Weight (KG) b d1 d2 h L L J-1040 16 18 20 70 400 100 6.5 L J-1240 16 18 24 70 400 120 6.5 L J-1640 18 20 26 100 400 160 9.5 Catalog No. Dimensions (MM) Rated Failure Load (KN) Weight (KG) b d1 d2 h L L J-2540 16 24 18 120 400 250 11.0 L J-3040 18 26 18 120 400 300 13.6 L J-3045 18 26 18 120 450 300 13.2 Yoke Plate (Type BN) Catalog Dimensions (MM) Rated Failure Load (KN) Weight (KG) No. b d1 d2 h L S1 S2 S3 BN2--16 22 14 26 100 400 50 40 80 160 10 BN2--20 22 14 26 100 400 50 40 80 200 10 Yoke Plate (Type BL) Catalog No. Dimensions (MM) Rated Failure Load (KN) Weight (KG) b d1 d2 d3 h L S S1 S2 BL-1240 16 18 24 24 -- 400 240 -- -- 120 7.8 BL-12 16 18 20 20 85 400 80 50 40 120 9.3 BN2-1640R 18 14 26 26 100 400 80 50 40 160 11.5 BN-20 18 14 26 26 120 400 -- 50 40 200 17.6 BN2-30 22 14 26 26 120 400 80 50 40 300 20.3 Yoke Plate (Type LBD) Catalog No. Dimensions (MM) Rated Failure Load (KN) Weight (KG) b d1 d2 d3 h L LBD-0740 16 18 18 18 95 400 70 9.0 LBD-0740A 16 18 18 14 150 400 70 12.2 LBD-1040 18 20 18 18 100 400 100 LBD-1240 16 24 18 18 95 400www.cdepf.com
