Yoke Plate Hardware For Overhead Transmission Line

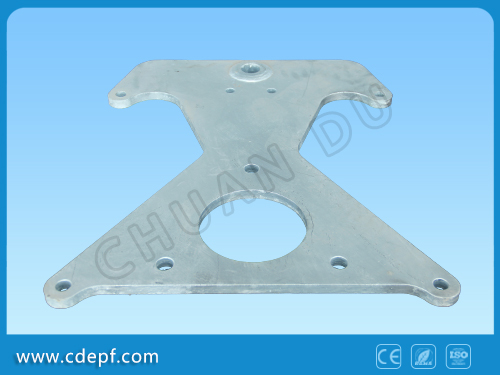

Yoke Plate Hardware For Overhead Transmission Line The yoke plate is plate-shaped link fitting which is mainly used to connect insulator strings or assemble the load-bearing branches into a integral.  Line fittings are metal parts used to connect transmission line towers, conductors, lightning wires and insulators, or protect conductors, lightning wires, insulators and so on. They are usually made of cast steel and malleable iron.  For special application of open profile insulators having large diameter it may be necessary to increase the sub-conductor spacing upto 600mm. Catalog No. Dimensions (MM) Rated Failure Load (KN) Weight (KG) L H Φ1 Φ2 Φ3 b b1 S LX-1645 450 95 20 26 28 28 28 80 160 26.0 LX-2145 450 95 18 30 - 26 18 - 210 20.0 LX-2545 450 95 20 33 18 30 18 80 250 25.5 LX-3045 450 95 24 39 14 32 18 80 300 27.1 LX-3245 450 95 20 39 - 32 18 - 320 27.4 LX-4245 450 100 22 39 18 22 22 60 420 35.4 LX-1645A 450 95 20 26 18 18 18 80 160 26.0 LX-2145S 450 95 18 26 18 20 16 80 210 21.3 LX-2150S 500 95 18 26 18 20 16 80 210 25.5 LX-3250S 500 95 20 33 18 28 18 80 320 29.0 LX-4250S 450 95 20 39 18 32 18 80 420 29.0 LX-6450S 500 95 20 45 18 36 18 80 640 30.5 our factory Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produceswww.cdepf.com
