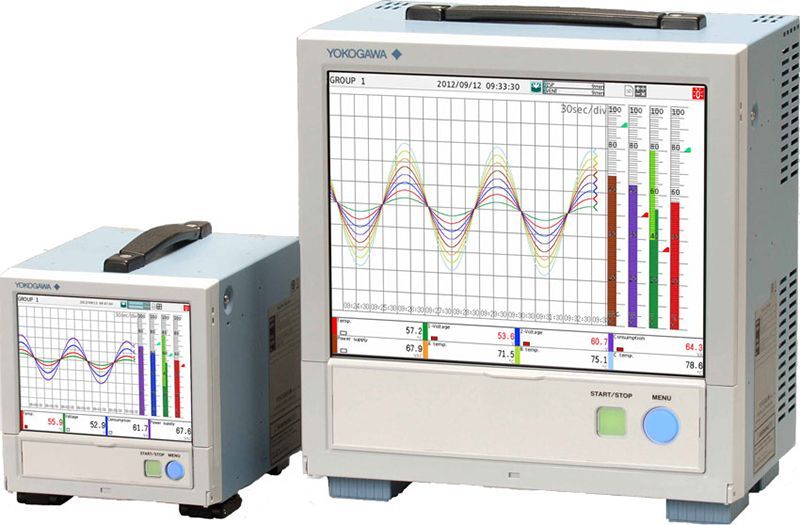

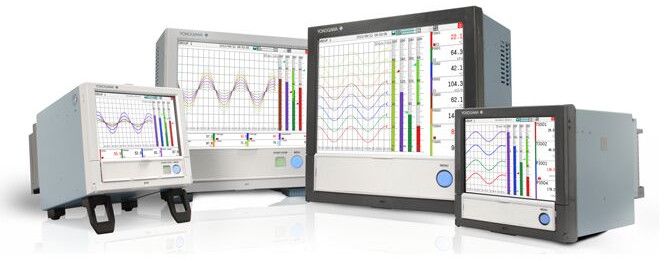

Plastic Fully Automatic Yokogawa Paperless Recorder GP10/GP20

The GP10/GP20 are portable type paperless recorders that display real-time measured data on a touch screen and save data on an external storage medium (SD card).

• The number of analog input is a maximum of 100 channels in GP10 with expandable I/O*1, GM sub unit*1, a maximum of 100 channels in GP20 standard type (GP20-1) with expandable I/O,and a maximum of 450 channels*2 in GP20 large memory type (GP20-2) with expandable I/O, GM sub unit.
• The GP10/GP20 have the large internal memory (GP10/GP20-1: 500MB, GP20-2: 1.2 GB), and

            prolonged record and preservation are possible.

• As the input signal, a DC voltage, thermocouple, resistance temperature detector, DI (DCV input

           (TTL), contact signal), or mA (DC current) can be set to each channel.

        ● Analog output is capable of retransmission output of various types of channels and also manual                 output. It provides current output with channels that are isolated. (Analog output module)

        ● Input and output have module structure and it can extend them easily. (GP10: max. 3*, GP20:                 max. 10*)

        ● A module type is seven types, an analog input, a analog output, a digital input, a digital output, a

           digital input/output, a pulse input, and a PID control.
