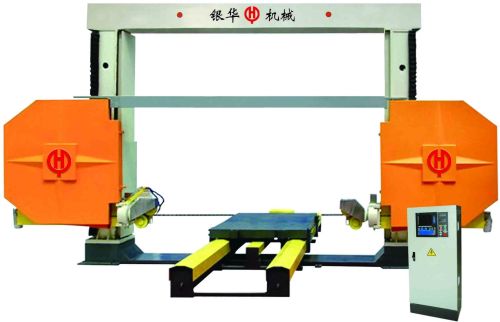

YSJ-1600 Numerical Control Wire Saw

no of wireone or two
functioncutting slab and profilling
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

type parameter YSJ-1600X3000 YSJ-2200X4000 Saw diameter Î¦8-Î¦11mm Î¦8-Î¦11mm Saw gross length 16500mm 21350mm Line speed 0-40ms 0-40ms Lifting travel of cutter 1600mm 2200mm Max process....

View More Details

Send Enquiry

Product Details

type
parameter YSJ-1600X3000 YSJ-2200X4000
Saw diameter Î¦8-Î¦11mm Î¦8-Î¦11mm
Saw gross length 16500mm 21350mm
Line speed 0-40ms 0-40ms
Lifting travel of cutter 1600mm 2200mm
Max process size 3000X2000X1500mm 4000X2000X2100mm
Production efficiency 1-2m2h(marble)
0.5-1 m2h(granite) 1-2m2h(marble)
0.5-1 m2h(granite)
Full size 7500X6000X3800mm 9800X7000X5200mm
Gross power 15.09KW 20.09KW
Gross weight 7T 14T
Worktable whether revolve NO 360Âº
Function
major in profiling processing of the granite and marble, can cutting different sizes of arc slab, solid columns and hollow columns and large-scale stone line, letter etc.
