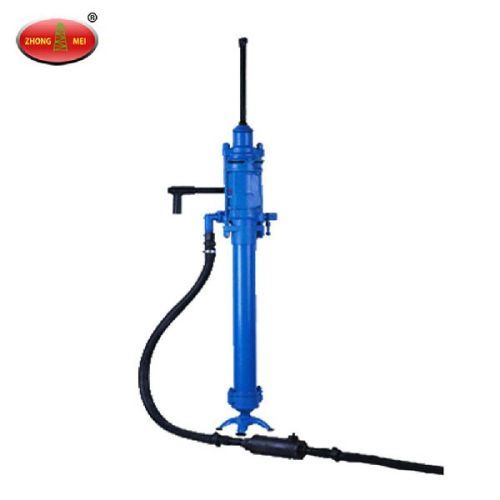

YSP45 Quarry Pneumatic Upward Stoper Rock Drill

Introduction of YSP45 Quarry Pneumatic Upward Stoper Rock Drill We are manufacture of drilling machine such as rock drill, water well drilling rig, drill bits and rigs, the rock drill have the flowing species of Stoper Rock Drill, YSP45 Stoper Drill, Pneumatic Stoper Drill. YSP45 Quarry Pneumatic Upward Stoper Rock Drill is widely used in drilling quarrying for rock, stione, coal or lineston mine. It`s robust design for tough working condition. It has high inpaxct frequency and is mainly used for drilling, raise driving, bolting and other defence project facility. It`s high efficiency, upward(60-90 degree)drilling, tough working condition blasting. Main Parameter of YSP45 Quarry Pneumatic Upward Stoper Rock Drill Weight 26 kg Length 661 mm Cylinder Diameter 80 mm Piston Stroke 60 mm Working Pressure 0.4 0.5 0.63 Mpa Impact Energy ≥44 ≥63 ≥70 J Impact Frequency ≥28 ≥35 ≥36 HZ Air Consumption ≤52 ≤58 ≤82 Ls Torque ≥15 ≥19 ≥23 N·m Rotate Rate ≥250 ≥260 ≥300 Rmin Drill Speed ≥250 ≥400 ≥470 Mmmin Noise ≤124 ≤125 ≤127 DB Air Pipe Diameter 25 mm Water Pipe Diameter 13 mm Bore Diameter 34-42 mm Shank Specification 22*108±1 mm    FT160BD Short Air Leg Weight 15 kg Length 1400 mm Push Stroke 965 mm Cylinder Diameter 65 mm    FT160BC Long Air Leg Weight 17 kg Length 1800 mm
