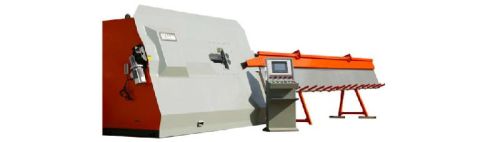

YT-13S Stirrup Bending Machine

₹ 40.95 Lakh / Set

MOQ1 Set(s)
Model No.YT-13S
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Yt-13s .remote function: with (3 route control ) .straightening system:s arc straightening (our patented product) .single strand diameter(mm): 6-13 .double strand diameter(mm): 6-10 .bending....

Company Information

Shaanxi YONGTUO Machinery Technology Co., Ltd.

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Yt-13s
.remote function: with (3 route control )
.straightening system:s arc straightening (our patented product)
.single strand diameter(mm): 6-13
.double strand diameter(mm): 6-10
.bending angle: 1-180
.max pulling speed: 170mmin
.length tolerance: Â±1mm
.angle tolerance:1
.production capacity(single strand): 1100 pcs hour
.production capacity(double strand): 2200 pcs hour
.bending direction : bi-direction
.elbow move up and down: with
.double wheels reverse conveying mechanism: with (our patented product)
.equipment dimension (mm): 3450*1280*2090
.steel straight bar collection frame (mm): 6000*650*500
.rated power: 32kw
.equipment weight: 2100kg.
