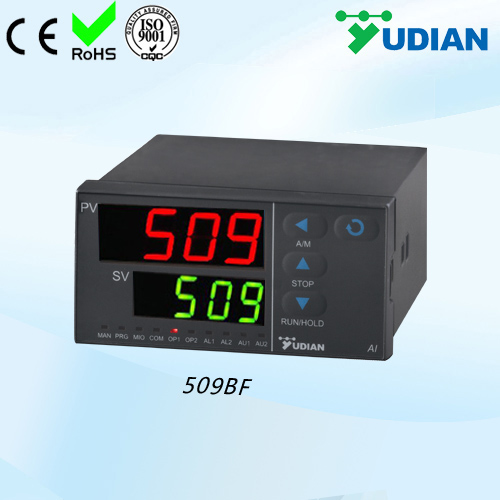

Yudian Mould Temperature Controller

Yudian mould temperature controller.AI-509 Economical temperature controller(标题)
Accuracy: 0.3%FS±0.1℃
Input type: Thermocouple:K,E,J,N,S; PT100
Output type: Relay, SSR Drive, Triac
Power supply: 100-240VAC,-15%,+10%/50-60Hz or 24VDC
℃ / ℉ Selectable
Modular design for output, alarms
ON/OFF, PID, APID with AT control mode
CE, RoHS, ISO9001
3 years warranty
Model AI-509
Dimension 96*96*100mm, 72*72*100mm, 48*48*95mm, 48*96*100mm, 96*48*100mm, 160*80*100mm, 80*160*100mm
Control mode On-off control mode AI PID Control with Auto Tuning(AT)
Measurement accuracy 0.3%FS ± 1°C
Resolution 0.1°C
Response time ≤0.3s ( when digital filter parameter dL=0)
Input Thermocouple: K, S, R, E, J, N
RTD: PT100
Input range K(0~1300°C), S(0~1700°C), R(0~1650°C), E(0~800°C), J(0~1000°C),N(0~1300°C)
RTD: Pt100(-200~+600°C)
Output
(modularized) Relay output (NO+NC): 250VAC/2A ,1A
TRIAC zero Crossing trigger output
SSR Voltage output: 12VDC/30mA (used to drive SSR)
Options Alarms: 0~3
Operating&
Environmental Power supply: 100~240VAC, -15%, +10℃/50~60HZ
Power consumption: ≤3W
Operating Ambient : temperature -10~60°C; humidity ≤90%RH
Approval: CE, RoHS, ISO9001
