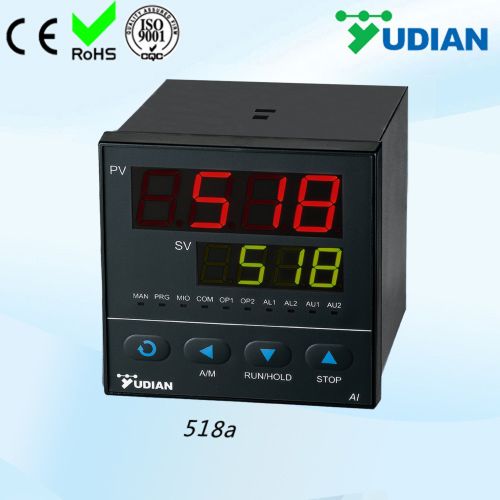

Yudian Temperature Controller

Model AI-518
Dimension 96*96*100mm, 72*72*100mm, 48*48*95mm, 48*96*100mm, 96*48*100mm, 160*80*100mm, 80*160*100mm
Control mode On-off control mode AI PID Control with Auto Tuning(AT)
Measurement accuracy 0.25%FS ± 1
Resolution PT100, K: 0.01°C; others: 0.1 °C
Response time ≤0.3s ( when digital filter parameter dL=0)
Input Thermocouple: K, S, R, T, E, J, N, WRe5~WRe26
RTD: Pt100, Cu50
Linear mV: 0~5V, 1~5V, 0~1V, 0~100mV, 0~20mV, 0~500mV etc.
Linear Current:0~10mA, 0~20mA,4~20mA etc.
Input range K(-50~1300°C), S(-50~1700°C), R(-50~1700°C), T(-200~+350°C), E(0~800°C), J(0~1000°C),B(200~1800°C),N(0~1300°C), N(0~1300°C)
RTD:Pt100(-200~+600°C) , Cu50(-50~+150°C)
Output
(modularized) Relay output (NO+NC): 250VAC/2A or 30VDC/1A
TRIAC phase shift Output
TRIAC zero Crossing trigger output
SSR Voltage output: 12VDC/30mA (used to drive SSR)
Linear current output: 0~20mA, 4~20mA
General specifications Voltage: support AC85-265V, 50/60Hz or DC24V.
Power consumption: ≤3W
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;
4KV according to IEC61000-4-5.
Operating Ambient : temperature -10~60°C; humidity ≤90%RH
Optional function 1~4 alarms, RS485 communication
