Contact SupplierDescription:

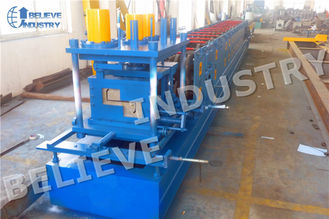

this z purlin roll forming machine is used to produce z-shape purlins. Main components of this machine are decoiler, guiding and leveling device, pre-punching device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.
technical parameters
raw material carbon steel, galvanized steel, q235
material thickness 1.5-3.0mm
material width depend on specific profile
diameter of shaft 76mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 18.5kw
forming speed 15-20mmin
forming station 16 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
