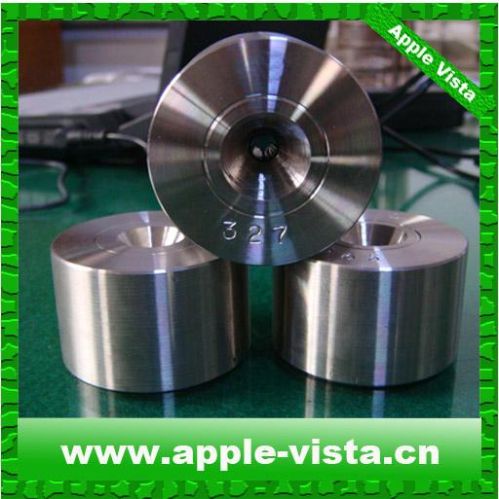

Z26005 Wire Drawing Dies/ Pcd Wire Drawing Dies

can be made by your requirement
Fetures:
1.Very high wear resistance ,hardness
2.Long life,short delivery time
3.Can offer OEM
4.Best price
5.Free shipping
6. 100% virgin powder.
7. can drawing copper, iron, steel , and other metals.
8. Can offer both blank and finishing with casting.
9. also offer unstandard size according to customer's requirment.
wire drawing dies
carbide drawing dies as supplied drawings
per MISUMI,HASCO standard
for mold,die manufacturer
high precision
We are producing carbide wire drawing dies, natrual diamond wire drawing dies, PCD wire drawing dies, CVD wire drawing dies, polycrystalline wire drawing die in a wide range of style and sizes ranging from 0.03-25mm, applicable for drawing copper wire, aluminum wire, steel wire, iron wire, tungsten wire, welding wire, etc.We welcome inquiries from buyers around the world.
----------------------------------------------------------------------------------------------------
1.Structure of dies:
The hole of the wire drawing dies is made up of four parts:
*Lubricating area of the entry: There is an arc to make the wires enters to the workaround conveniently.
*The workaround: The metals come about plastic deformation while drawing, the cross section of the metals is compressed and reduced.
*Diameter fixed district: to guarantee the size and form accurate and even, lengthen the service life of the die.
*Wire outlet area: wire outlet terminal can prevent scuffing and break-up when the machine is stopped.
2. Material source:
The die materials imported from U.S.A. GE company. Each one has trade marks and certificate of company. Granularities are 351025.
3. The production and delivery will take 3-25 days.
4. Usage time: the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.
Draing Dies Parameters(unit: mm)
Hole SizeΦd
Hole Size
Tolerance
Ovality
Casing
ΦD×H
Φ0.100~0.200
≤0.0015
≤0.0008
Φ25×8
Φ0.201~0.400
≤0.0020
≤0.0010
Φ25×8
Φ0.401~0.500
≤0.0025
≤0.0015
Φ30×10
Φ0.501~0.750
≤0.0030
≤0.0020
Φ30×10
Φ0.751~1.50
≤0.0035
≤0.0025
Φ37×12
Φ1.501~2.00
≤0.0050
≤0.0030
Φ37×12
Φ2.001~3.00
≤0.0070
≤0.0050
Φ41×20
Φ3.001~4.60
≤0.010
≤0.0080
Φ41×20
Φ4.601~8.00
≤0.015
≤0.012
Φ41×24
Note: Specification only for reference. Special die blank and casing are available upon request.
