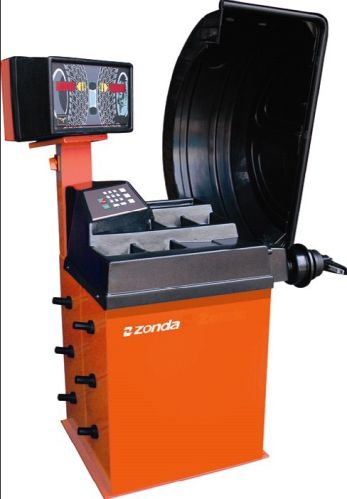

ZD-1630/ZD-B903 WHEEL BALANCER

Features
Electronic balancing machine with microprocessor for off-vehicle wheels of cars,vans and motorcycles
Manual input of rim width,distance and diameter
Automatic inspection of dynamic and static balance
Six types of balancing,able to balance six types of aluminum rims
Automatic self diagnosis and self-calibration function
Rigid plastic wheel protection meets national safety standard
Indication of unbalance in convertible grams and ounces
Automatic start by lowering the wheel guard
Automatic stop
Technical data
Model ZD-1630 ZD-B903
Max.wheel weight 70kg 65kg
Rim diameter 10〞-24〞 10〞-24〞
Rim width 1.5〞-20〞 1.5〞-20〞
Max.wheel diameter 950mm 950mm
Cycle time 8s 8s
Read-out accuracy ±1g ±1g
Power supply 220v/50Hzor110v/60Hz 220v/50Hzor110v/60Hz
Net weight 128kg 112kg
Motor power 0.5kw 05kw
Shaft RPM 240rpm 240rpm
Working noise ≦70dB(A) ≦70dB(A)
Working condition temperature:0℃～50℃Relative humidity:85% temperature:0℃～5℃Relative humidity:85%
Unbalance read-out Increase by 1g Increase by 1g/5g
Overal sizes 1220×1340×1770mm 1220×1270×1760mm
