Contact SupplierFeatures

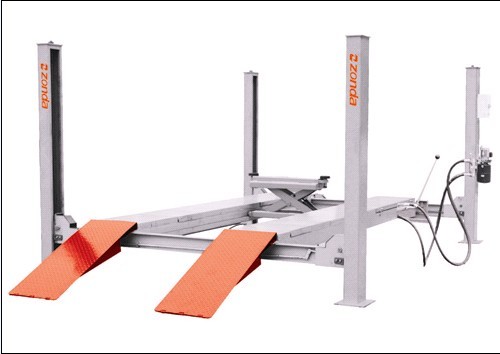

Anti-slip platform,distance adjustable to accommodate different vehicle
The hydraulic cylinder is inside the fixed platform and is thus perfectly protected
Safety systems against cable breakage,against obstacles during descend
Connected steel cables to force the synchronized moving of platforms
Secondary hydraulic jack for wheel free
With side plates and turntable spaces for wheel alignment
ZD-QJY3.5FB-1 with Italian pump station,Chinese hydraulic cylinder
ZD-QJY3.5FB-2 with Chinese pump station,Chinese hydraulic cylinder
Technical data
Lifting capacity 3500kg
Secondary lifting capacity 2000kg
First lifting height 1550mm
Secondary lifting height 350mm
Min. height 200mm
Driven-thru distance 2900mm
Net weight 1350kg
First raising time 50-80S
First lowering time 48-58S
Secondary raising time 10-20S
Secondary lowering time 11-25S
Motor power 3kw/2.2kw
Power supply 380v,220v
