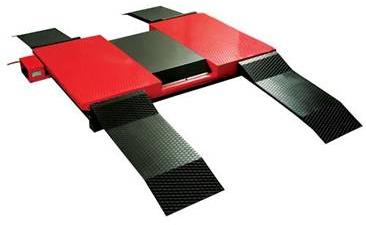

Zetamak Pneumatic Platform Lift

We offer Zetamak Pneumatic Platform Lift.
The epl 2000 is designed to definitively resolve the problems of working on tyres of any type of truck or van. The lifting system is entirely pneumatic with a mechanical safety device that prevents accidental total descent (even without air pressure).
the lift has a solid structure that ensures the complete stability of the raised vehicle.
The climbing ramps can be removed to facilitate balancing operations with wheels mounted, and it has a stopping level to assist operators positioning the vehicle before lifting. The pedal control allows the platform to be stopped at the required height when moving either up or down.
* * * equipped with 4 arms (optional) for large vehicles.
max. Capacity : 3000kg
working pressure : 10 – 12 bar
net weight w/o ramps : 320kg
ramps : 150 kg
maximum raise : 400mm
width : 1370mm
length : 2400mm
height : 140mm
case size, lift : 1450 x 2150 x 350 mm
case size, ramps : 500 x 1200 x 500 mm
