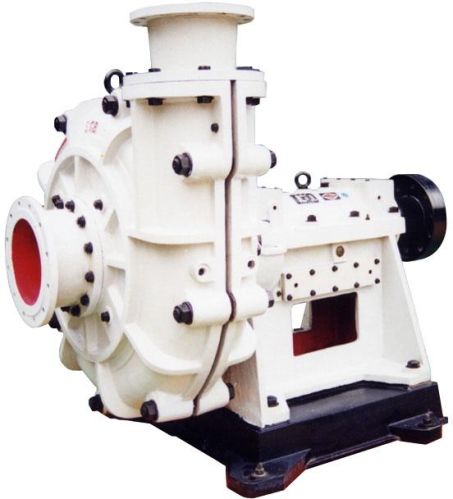

Slurry Pump

Model allowable Mating Max Power Clear Water Performance Impeller
Capacity(q) head(h) speed(n) Efficicy(î·) npsh(capacity) Vanes Diamter
(kw) (m) (r/min) (%) (npsh)
(m3/h) (l/s) (m) (mm)
25zhb 15 12.6-28.8 3.5-8 6--68 1200-3800 40 2--4 5 152
25zhc 30 16.2-34.2 4.5-9.5 25-92 1400-2200 20 2-5.5 5 330
40zhb 15 32.4-72 9--20 6--58 1200-3200 45 3.5-8 5 184
50zhc 30 39.6-86.4 11--24 12-64 1300-2700 55 4--6 5 214
50zhd 60 68.4-136.8 19-38 25-87 850-1400 47 3-7.5 5 457
75zhc 30 86.4-198 24-55 9-52 1000-2200 71 4--6 5 245
75zhd 60
75zhc 30 97.2-194.4 27-54 9-53 1000-2200 55 3 240
75zhd 60
75hhe 120 126-252 35-70 12-97 600-1400 50 2--5 5 508
100zhd 60 162-360 45-100 12-56 800-1550 65 5--8 5 365
100zhe 120
100zhd 60 180-396 50-110 7-61 600-1600 55 3--8 4 372
100zhe 120 180-396 50-110 7-61 600-1600 55 3--8 4 372
100zhd 60 144-324 40-90 10-52 800-1600 55 4.5-9 2 371
100zhe 120
100zhd 60 162-360 45-100 21-64 1000-1600 55 2 371
100zhe 120
100zhd 60 126-288 35-80 10-55 800-1600 58 2-2.5 2 365
100zhe 120
100zhs 560 324-720 90-200 30-118 600-1000 64 3--8 5 711
150zhs 560 468-1008 130-280 20-94 500-1000 65 4--12 5 711
150zhe 120 360-828 100-230 10-61 500-1140 72 2--9 5 510
150zhr 300
150zhe 120 360-828 100-230 7-70 400-1140 70 3--6 8 536
150zhr 300
150zhe 120 360-828 100-230 7-52 400-1000 70 2.5-6 4 536
150zhr 300 360-828 100-230 7-52 400-1000 70 2.5-6 4 536
150zhe 120 288-648 80-180 5-47 400-1100 60 3--6 2 510
150zhr 300
150zhht 1200 576-1152 160-320 32-95 450-725 65 6--10 5 965
200zme 120 540-1228 150-340 15-61 600-1100 70 4.5-8 4 549
200zmr 300
200zme 120 504-1080 140-300 18-66 700-1100 62 4.5-7.5 4 549
200zmr 300
200zme 120 666-1440 185-400 14-60 600-1100 73 4--10 5 549
200zmr 300
200zhst 560 612-1368 170-380 11-61 400-850 71 4--10 5 686
250zhst 560 936-1980 260-550 7-68 300-800 82 6 5 762
720-1620 200-450 7-45 300-650 80 2.5-7.5
300zhst 560 1260-2772 350-770 13-63 300-600 77 3--10 5 965
