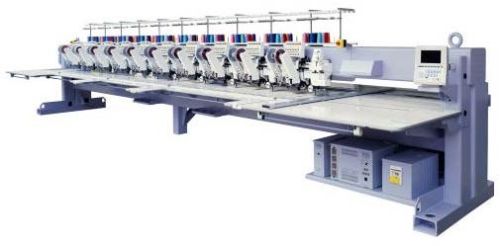

    Zig Zag Embroidery Machine

    • Supply TypeManufacturer, Exporter
    • Preferred Buyer Location All over the world

    We are offering Barudan - lock stitch Zig Zag Embroidery Machine. We present the world's fastest lock stitch Zig-Zag Embroidery Machine with a maximum speed of 900rpm. Barudan technology....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 13 Years
    • building Nature of Business Manufacturer
    • Year of Establishment 2000

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    We are offering Barudan - lock stitch Zig Zag Embroidery Machine. We present the world's fastest lock stitch Zig-Zag Embroidery Machine with a maximum speed of 900rpm. Barudan technology produces high quality embroidery on various materials, such as taping, cording, zig-zag sewing, are possible with the help of our lock stitch Zig-Zag Embroidery Machine.
    Salient Features

    • Industrial-strength construction
    • Super quiet operation
    • Thread clamps hold threads in place to prevent pull outs
    • Built-in 3.5" disk drive
    • Automat provides a high-speed networking system
    • 1,000,000 stitch capacity in 30 patterns
    • Reads and stores most popular embroidery machine formats
    • Matrix function allows a single pattern to be sewn multiple times
    • Automatic return to origin
    • Digitally float to any stitch in a design
    • Automatic thread break detector
    • Program jog movements
    • Variable sewing speed from 200 to 1,000 stitches per minute can be adjusted to suit each individual application
    • Perimeter trace allows you to trace the outline of a design to ensure proper placement of design
    • Visual pattern preview
    • Bobbin counter notifies operator when the bobbin needs to be changed
    • Automatic speed control ensures optimum stitch quality
    • 1,600 stitch auto mend and stitch backup
    • Backup disk of all patterns stored in memory can easily be created or restored with one simple command
    • Function list allows you to quickly and easily change color sequence in one screen
    • Powerful 1.0 horsepower main motor enables embroidering on thick fabric including leather and heavy webbing
    • Internal battery backup and origin reference allow you to restart quickly and accurately even after a power failure.
    • Embroider a variety of material using different attachments
    • User friendly color automat
    • Bobbin thread detector


    Technical Specifications

    Model

    Embroidery Area
    (mm)

    Speed (rpm)

    Dimension   (mm)

    LWH
    BEVS-HLZ912750×560/560(Standard Embroidery)
    200~1000

    (Lock Stitch Embroidery)
    200~900
    87952080

    1775

    BEVS-HLZ1206750×640/64061052080
    1000×640/6402580
    BEVS-HLZ1208750×640/64073752080
    1000×640/6402580
    BEVS-HLZ1210750×640/64086652080
    1000×640/6402580



    ModelNumber Colors of EmbroideryNeedle Distance
    (mm)
    Power Supply
    (V)
    Power Consumption
    (kw)
    BEVS-HLZ9129560
    200V~240V


    200V~415V
    2.5
    BEVS-HLZ120612640
    BEVS-HLZ1208
    BEVS-HLZ1210
