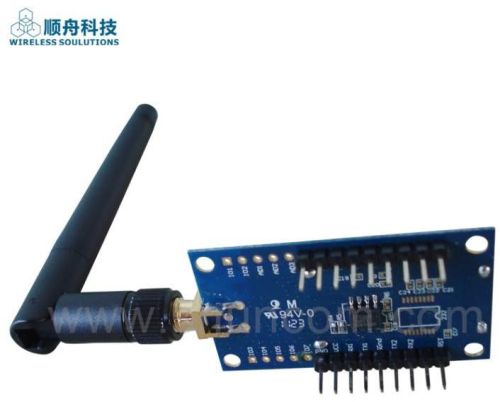

Zigbee Module - Low Power

We are offering zigbee module - low power.
we are offering zigbee module ,low power etc. Shuncom sz05- std-sma-ttl the embedded wireless serial communication module, using the zigbee wireless technical, is compliance with the industrial standards. It has advantages of long communication distance, strong anti-jamming, flexible network to make sure transparent data transmission among many devices with self-organizing star, line and mesh network topology.
wireless network
transmission distance: 200m at sight
network topology: star, tree, link and mesh
maximal data packet: 100 bytes
node type: coordinator, router or end device (can be set )
data interface
data interface: ttl
serial signal: txd , rxd
baud rate: 1200~115200bps (optional)
serial parity: none, even, odd
data bit: 7 or 8
parity bit: 1
transceiver:
modulation model: dsss direct spread spectrum
frequency range: 2. 405ghz~2.480ghz
wireless channels: 16
receiver sensitivity: -92dbm
transmit power output: 3dbm
antenna: sma
conflict prevention: csma-ca and csma-ca of gts
power supply
power supply: dc 5v
peak current: 50ma
average current: 48ma
sleep current: 5ua
working environment:
working temperature: -40ã�â¢ã¯â¿â½ã¯â¿â½-85ã�â¢ã¯â¿â½ã¯â¿â½
storage temperature : -55ã�â¢ã¯â¿â½ã¯â¿â½-125ã�â¢ã¯â¿â½ã¯â¿â½
size: 4.8cm*2.7cm (length*width)
applications:
building control
wireless sensorsã�â¢ã¯â¿â½ã¯â¿â½ network
wireless industrial monitoring and control
wireless intelligent traffic light control
wireless farming control
environmental monitoring
smart home
notes
import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
