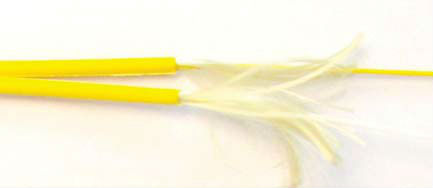

Zip Cords

APPLICATION

Superiortec’s zipcords are ideal to be used as patch cables in distribution systems as well as for connecting terminals.
The outer jacket is made of LSZH material.
Highly flexible and having small diameters make them the perfect solution to make the desired patch cords.

STANDARDS COMPLIANCE

Flame retardancy IEC 60332-3
Smoke density IEC 61034
Halogen-free IEC 60754-2, DIN VDE0472 part 813 (FRNC)
Generic cable specifications EN 187000: IEC 60794- 1&2, EN 188000:IEC 60793- 1&2

CONSTRUCTION

Cable core :-Tight buffered fiber (TB) 900um
Strain relief elements:-  non-metallic (aramid)
Cable jacket :- halogen-free and flame-retardant material
Color of jacket :- orange for multi-mode, yellow for singlemode

*Other colors are available upon request.

CABLE CHARACTERISTICS

Number of fibers (n) :- 2

Approx. Outer diameter of cables :- Depends on the jacket

Approx Weight:- 5.8 kg/km-17.5 kg/km

Minimum bending radius over flat side:- 30mm (Static), 60mm (Dynamic)
Max. Tensile strength (Long term):- 400N

Max. Crush resistance (Long term):- 200 N/dm
Operating temperature :-            -30°C to +70°C
