The valve has double seats.The fluid outflow through the valve core of the upper and lower sealing surface.The unbalanced pressure is small.It is a balanced structure,which are widely used in petroleum,chemical,pharmaceutical,metallurgical,power plants,such as the industrial sector,to control of gas liquid medium such as steam.

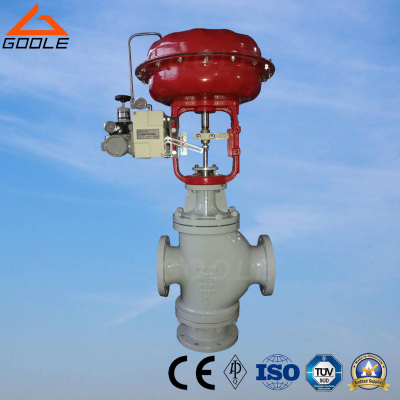

GAZJHN Pneumatic diaphragm double-seated pressure regulating valve Structure
Valve Body.
Structure:flowing through type globe valve with double-seated.
DN:25~300mm.
PN:1.6~10.0Mpa or class 150~class 600.
Connections:flanged type.
Material:WCB,HT200 ZG230-450 ZG1Cr18Ni9Ti.ZG0Cr18Ni12Mo2Ti.
Upper Cover.
Normal Temp:-20°C~+200°C.
Heat Radiation Type:-40°C~+450°C.
Gland Connection:bolted type.
Packing:V type PTFE.FLEXIBLE GRAPHITE.S.S BELLOWS.
Valve Assembly.
Valve Core:Double guiding&double-seated plug type.
Cv Features:Linear,Equal Percentage or Quick opening.
Material:1Cr18Ni9Ti0Cr18Ni12Mo2Ti.
Actuator.
Model:Multi-spring diaphragm type actuator
Material of the diaphragm:NBR with reinforced polyester fabric.
Spring range:0.02~0.10.04~0.2Mpa.
Air Supply:0.140.160.28Mpa.
Air Supply Connector:M10*1.
Working Temp:-30~+70°C.
Valve Acting Type:air to close or air to open.
Accessories:positioner, hand wheel.
Parameters:(with positioner.)
Leakage:
