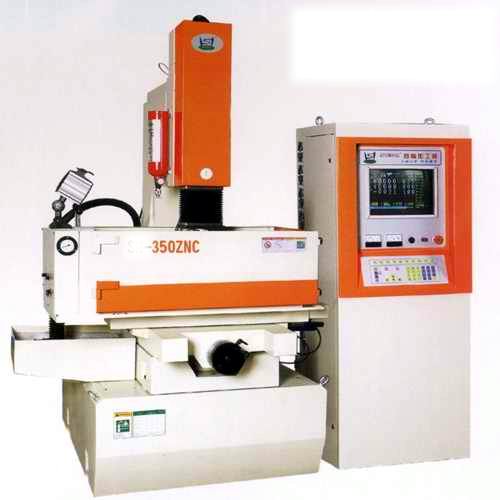

We are offering Znc Die Sinker Edm Machine.
Specifications of znc edm sinking machine
model:znc-350
the movement of axes
1.longitudinal travel of worktable x -axis 350 mm
2.cross travel of worktable y-axis 250 mm
3.ram servo travel z1-axis 150 mm
4.work head elevating travel z2-axis 200mm
worktable
1.maximum load 500 kg
2.maximum workpiece dimension allowed :1000*500*300 mm
3.dimension of worktable 300×600mm
4.out size of work tank 1080*550*350 mm
oil tank
1.out size of oil tank 1000*1300*450 mm
2.capacity of oil tank 250 litres
other parameters
1.maximum distance from the work head to the surface of worktable 420 mm
2.maximum weight of electrode 50 kg
3.gross weight of complete machine 1400 kg
standard accessaries
oil filtering net 2 pcs
tool kit 1 set
drill chuck 1 pcs
fire extinguisher 1 pcs
working clamping device 1 groups
hex keys 1 set
quartz working lamp 1 pcs
magnetic base of oil-jet 1 pcs.
