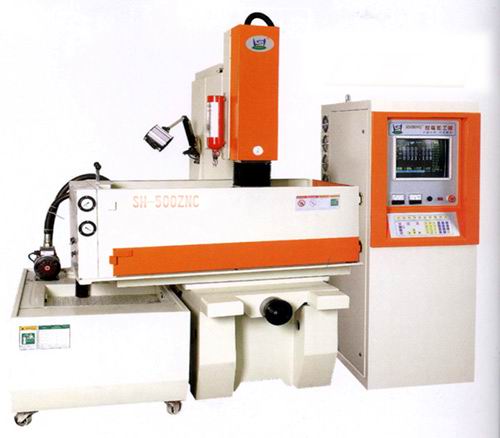

We are offering Znc Sinker Edm Machine.
Specifications of znc edm sinking machine
model:znc-500
the movement of axes
1.longitudinal travel of worktable x -axis 500 mm
2.cross travel of worktable y-axis 400 mm
3.ram servo travel z1-axis 250 mm
4.work head elevating travel z2-axis 300 mm
worktable
1.maximum load 1000 kg
2.dimension of worktable 480*800mm
3.out size of work tank 1400*700*500 mm
oil tank
1.out size of oil tank 1400*850*500 mm
2.capacity of oil tank 540 litres
other parameters
1.maximum distance from the work head to the surface of worktable 680 mm
2.maximum weight of electrode 100 kg
3.gross weight of complete machine 2200 kg
standard accessaries
oil filtering net 2 pcs
tool kit 1 set
drill chuck 1 pcs
fire extinguisher 1 pcs
working clamping device 1 groups
hex keys 1 set
quartz working lamp 1 pcs
magnetic base of oil-jet 1 pcs.
