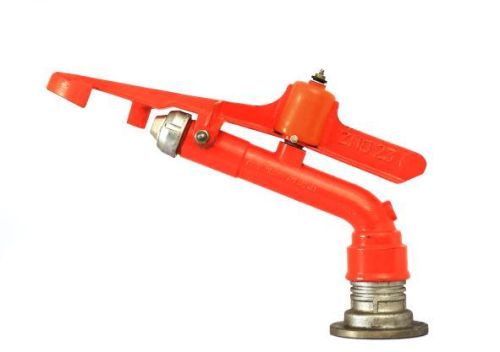

ZNO23 Single Nozzle Irrigation Sprinkler

MOQ50 Piece
Brand NamePIALs
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

PIAL's sprinklers come with sealed bearings and also provide higher yield with even water distribution. Applications: Large rain gun very large area coverage suitable for agriculture crops Can be used in dust suppression in sports-field, mining and road projects. Key Features: Exceptional durability proven by years of use Sealed bearings Even water distribution gives higher yield Sprinkler Inlet: Flange connection 50mm bore

View More Details

Send Enquiry

Technical Specifications

Nozzle Size	Pressure		Discharge	Diameter	Application Rate in mm/hr at Spacing in Mtrs
mm	BAR	HEAD(m)	IPM	m	Square		Triangular
17	4	40	375	78	42x42	12.8	48x42	11.2
	5	50	420	80	42x42	14.3	48x42	45265
	5.5	55	440	81	48x48	11.5	48x42	13.1
19	4	40	465	83	48x48	12.1	48x42	13.8
	5	50	521	86	48x48	13.6	54x42	13.8
	5.5	55	545	88	48x48	14.2	54x48	14.4
21	4	40	578.33	87	48x48	15.1	54x48	15.3
	5	50	635	90	48x48	16.5	54x48	16.8
	5.5	55	663.33	92	54x54	13.6	54x48	14.4
23	4	40	691.66	91	54x54	14.2	54x48	18.3
	5	50	766.66	93	54x54	15.8	60x48	16
	5.5	55	789.33	94	54x54	16.4	60x48	16.6
25	4	40	816.66	94	54x54	16.8	60x48	17
	5	50	903.33	96	54x54	18.6	60x48	18.8
	5.5	55	940	97	54x54	19.3	60x48	19.6
27	4	40	1053.33	100	54x54	21.7	60x54	19.5
	5	50	1103.33	102	60x60	18.4	66x54	18.6
	5.5	55	1158.33	103	60x60	19.3	66x54	19.5
30	4	40	1293.33	105	60x60	12.6	66x54	21.8
	5	50	1361.33	107	60x60	22.7	66x54	22.9
	5.5	55	1434.99	108	60x60	23.9	60x60	21.7
32	4	40	1451.66	108	60x60	24.4	66x54	24.6
	5	50	155.33	110	60x66	21.4	66x60	23.5
	5.5	55	1634.99	111	60x66	22.5	72x60	22.7
