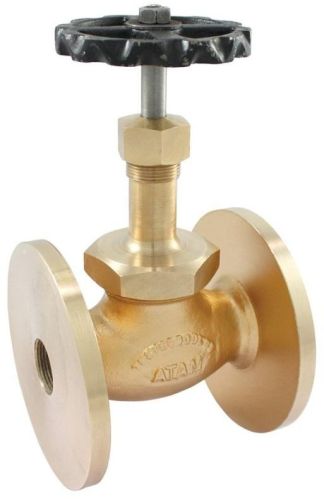

Zoloto Bronze Union Bonnet Globe Valve (flanged) Article Code 1032

zoloto bronze union bonnet globe valve (flanged) article code 1032

salient features:-

• flanged ends to bs 10 table ‘f’.
• screwed on bonnet, rising stem.
• provision for re-packing under pressure.
• renewable 13% cr. stainless steel (ss 410) working parts.
• handwheel operated.

test pressure (hydrostatic) :
shell : 35 kg/cm²g (500 psig)
working pressure (steam) : 10.55 kg/cm²g (150 psig)
maximum working temperature : 225°c

suitable for   steam



  water



  oil



  air



 gas



 also available with ptfe seating for

air and gas applications,at a nominal extra price.



enquire now download pdftechnical infomaterials used

p.no.name of partmaterial of constructionspecificationquantity1 2 3 4 5 6 7 8 9 10 11 12

screw / bolt	bronze	is 318 gr. ltb 2	1
body seat ring	stainless steel	astm a276 type 410	1
disc	stainless steel	astm a276 type 410	1
disc nut	bronze	is 318 gr. ltb 2	1
stem	stainless steel	astm a276 type 410	1
bonnet	bronze	is 318 gr. ltb 2	1
gland packing	asbestos	is 4687	1
gland	bronze	is 318 gr. ltb2	1
gland nut	bronze	is 318 gr. ltb2	1
handwheel	cast iron	is 210 gr. fg 200	1
washer	carbon steel	– – –	1
nut	carbon steel	– – –	1

sizes / dimensions

size (inches)size (mm)a ±1.5b ~øc ~1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4

15	82	117	70
20	96	132	80
25	112	148	86
32	119	176	102
40	132	188	102
50	157	216	127
65	185	248	150
80	213	270	170
100	248	332	190
