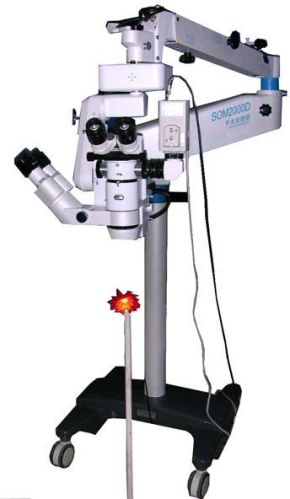

Zoom Operation Microscope

We are offering zoom operation microscope.
The microscopes are designed by three international top-ranking experts, and the design level of the microscopes is up to the world lead level
the depth of field and definition are improved markedly
the unique technique of eliminating the misdirection light is adopted, so the oculists will feels comfortable during the operation
the assistant microscope is equipped with the independent focus inching equipment, which gained the patent for invention, for ensuring the same definition with the chief oculist during the operation
zoom magnification
all the speed-down equipment adopts imported motors so as to gain the low noise and steady speed for the convenience of the successful process of the operation
the microscope adopts the independent electrical box which is convenient to maintain
control panel: xy, focus, zoom under the control of the infinite adjusting speed of motor; digital control of brightness; xy direction switch control of foot control (used when installing reverse image lens system); electric system with the function of automatic fault diagnosis
modularized design, individualized parameter setting
totally new figure design, steady pedestal, convenient installation and debugging
convenient maintenance, superior service.
specification
magnification of eyepiece 12.5x18b
work distance 170mm
total magnification ( main) 4.2x~25x
diameter of visual field (mm) î¦ 50~î¦ 9
illumination 6o + 0o coaxial illumination; 26o oblique illumination
illumination bulb 12v100w halogen lamp
illumination control continuously digital adjustable
lux on objective plane � 65000lx
focusing range and speed 40mm, speed continuously adjustable� 2mms
x-y range and speed 50mmx50mm, speed continuously adjustable
spot diameter (mm) î¦ 45
input voltage ac220vâ± 10%50hzâ± 1%
ac110vâ± 10%60hzâ± 1%
