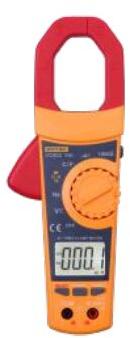

ZOTEK VC902 Autoranging Digital Clamp Meter

Features ：
Auto/manual ranges
True RMS measurement
550V protection in resistance and capacitance ranges
Large LCD display，MAX display 6000 counts
Sample rate: 3 times per second
backlight
Data hold
Polarity identification
Low voltage indication
1000A high current measurement ，low current measurement
Auto power off
Main measurements：AC/DC Voltage, AC/DC Current, Resistance，Capacitance，
Diode and Continuity Testing，Temperature, Frequency and duty cycle.
* Frequency：1Hz to 10MHz
* Temperature：-20℃ to 1000℃（-4℉ to 1832℉）
* Capacitance :10pF to 6000uF
* AC volts: 0.1mV to 750V
* DC volts：0.1mV to 1000V
* AC current：0.1uA to 1000A
* DC current：0.1uA to 6000uA
* Resistance ：0.1Ω to 60MΩ
* Duty cycle：1% to 99%
Specifications ：
(1)frequency：5/50/500/5k/50k/500k/5M/10M (±0.1+3)
(2)Temperature：﹤400℃ ±ï¼ˆ1.0%+5），â‰Â¥400℃±（1.5%+15）
﹤752℉ ±ï¼ˆ1.0%+5），â‰Â¥752℉±（1.5%+15）
(3)capacitance：10nF（±5.0+20）,100nF/1uF/10uF/100uF（±2.0%+5），1000uF/10000uF
（±5.0%+5）
(4)DC volt:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
(5)AC volt:600mV(±3.0%+3)，6V/60V/600V/750V(±1.0%+3）
(6)DCA:600uA/6000uA(±0.8%+10)
(7)ACA:600uA/6000uA(±0.8%+10)，60A/600A/1000A(±2%+30)
(8)Resistance：600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
(9)Duty cycle:1% to 99%(±1%)
(10) Measurement mode: Double-integral style A/D transform
(11)Over range indication: OL
(12) Working environment: 0~40℃, relative humidity
(13) Supply power: 3V (1.5V AA batteries * 2 Pcs)
(14) Dimension: 280*70*45mm
(15) Weight: 510g
(16) Accessories: User’s manual, outer packing box, a bag，a pair of test leads, a TP01K
thermocouple , and two 1.5V batteries
