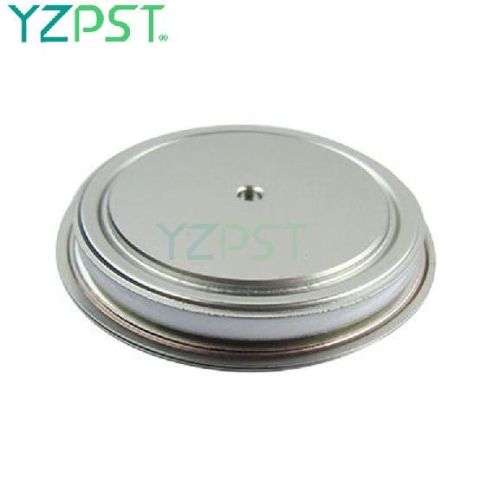

    ZP3500A Fast Recovery Tube Rectifier Diode, Brand Name : YZPST

    ZP3500A Fast Recovery Tube Rectifier Diode, Brand Name : YZPST

    Get Latest Price
    • Brand NameYZPST
    • HS Code85411000
    • Supply Ability500
    • CertificateISO9001-2008,ROHS
    • Supply TypeManufacturer, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Yangzhou Positioning Tech Co., Ltdverified-icon
    location Yangzhou
    View Number
    • calendar Member Since 7 Years
    • building Nature of Business Supplier
    • Year of Establishment 2003

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Brand NameYZPST
    • IncotermFOB,CFR,CIF
    • Productivity100
    • Supply Ability500
    • CertificateISO9001-2008,ROHS
    • TransportationOcean,Air
    • HS Code85411000

    Details

    Parameter

    Symbol

    Min

    Max.

    Typ

    Units

    Conditions

    Average value of on-state current

    IF(AV)



    3500



    A

    Sinewave,180o conduction,Tc =70oC

    RMS value of on-state current

    IFRMS



    5400



    A

    Nominal value

    Peak one cycle surge

    (non repetitive) current



    IFSM



    68000



    60000



    A A

    8.3 msec (60Hz), sinusoidal wave- shape,180o conduction, Tj = 150 oC

    10.0 msec (50Hz), sinusoidal wave- shape,180o conduction, Tj = 150 oC

    I square t

    I2t



    1.3x106



    A2s

    8.3 msec and 10 msec

    Peak on-state voltage

    VFM



    1.50



    V

    IFM = 3000 A;

    Reverse Recovery Current (4)

    IRM(REC)







    A

    IFM = 1000 A; dIF/dt = 10 A/µs; Tjmax

    Reverse Recovery Charge (4)

    Qrr







    µC

    IFM = 1000 A; dIF/dt = 10 A/µs; Tjmax

    Reverse Recovery Time (4)

    tRR



    *



    µs





    Parameter

    Symbol

    Min.

    Max.

    Typ.

    Units

    Conditions

    Operating temperature

    Tj

    -40

    +150



    oC



    Storage temperature

    Tstg

    -40

    +150



    oC



    Thermal resistance - junction to case

    RΘ (j-c)



    0.023

    0.046



    o

    C/W

    Double sided cooled

    Single sided cooled

    Thermal resistance - case to sink

    RΘ (c-s)



    .010

    .020



    o

    C/W

    Double sided cooled * Singlesided cooled *

    Mounting force

    P

    6000

    8000



    lb.



    Weight

    W







    oz. g





    • Payment Terms L/C, T/T
    • Port of DispatchShanghai
    • Delivery Time30 Days
